Micro ORP Kit

• EZO™ ORP Circuit Datasheet
• Micro ORP Probe Datasheet
• Half-Cell Isolated EZO™ Carrier Board Datasheet

• RoHS Certificate
• CE Certificate

• Arduino Uno Sample Code
• Arduino Mega / Giga Sample Code
• Arduino I2C Sample Code
• Raspberry Pi Sample Code (UART, I2C, USB)

• EZO UART Library
• EZO I2C Library

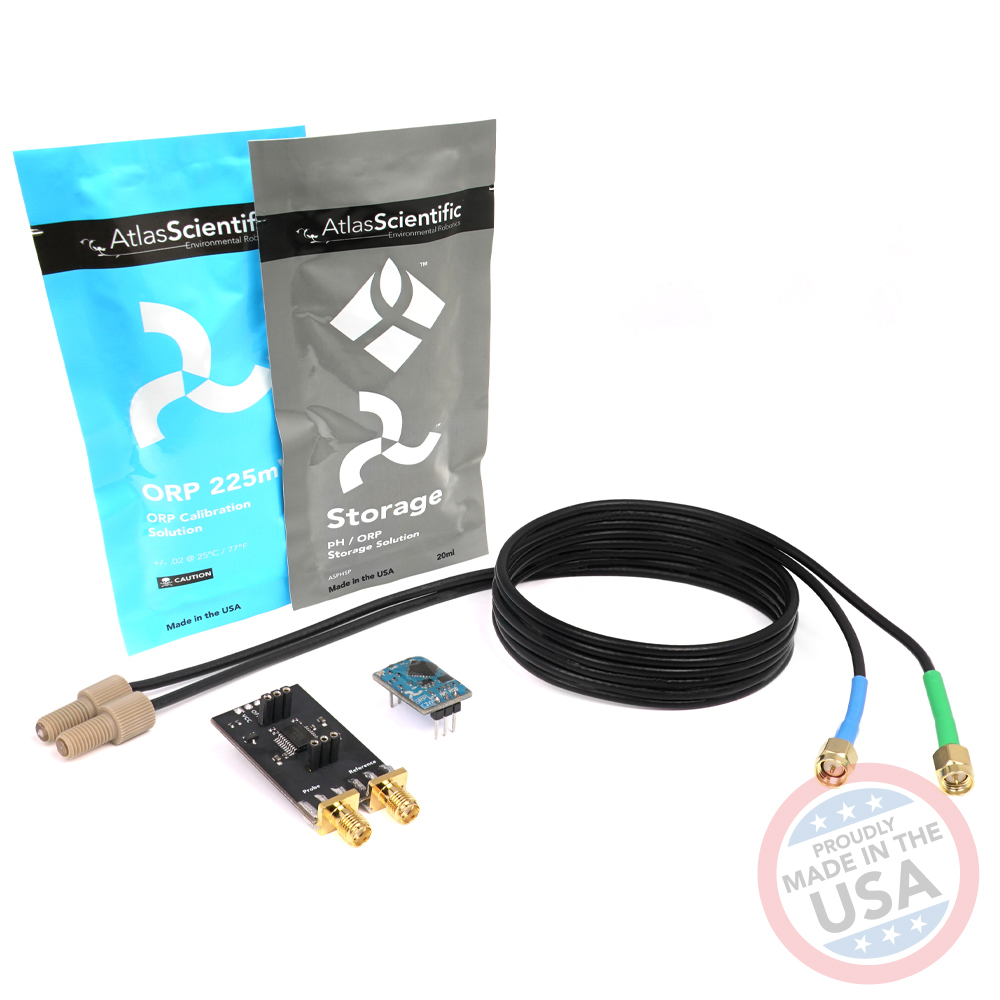

The Atlas Scientific Micro-ORP Probe kit comes with everything you need to make an embedded microfluidics ORP monitoring system. This kit makes it easy to take calibrated, high accuracy readings from a micro-ORP probe.

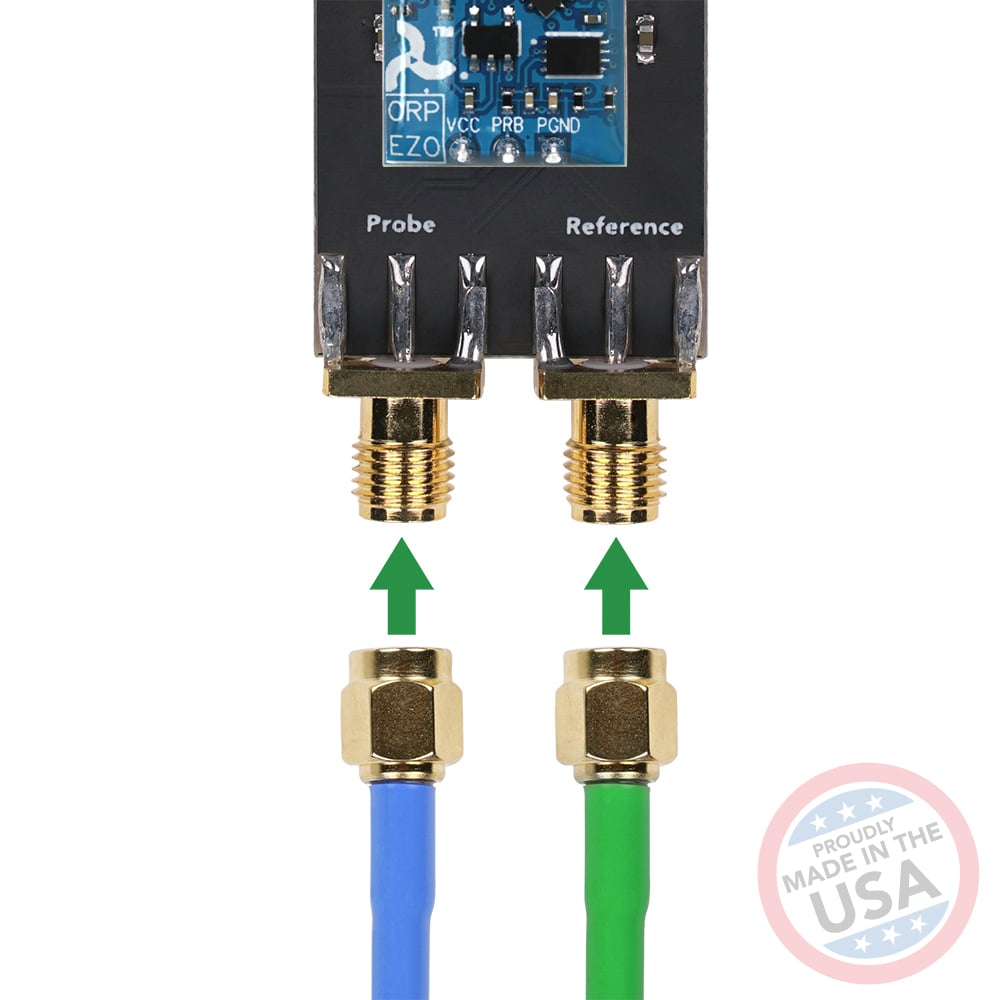

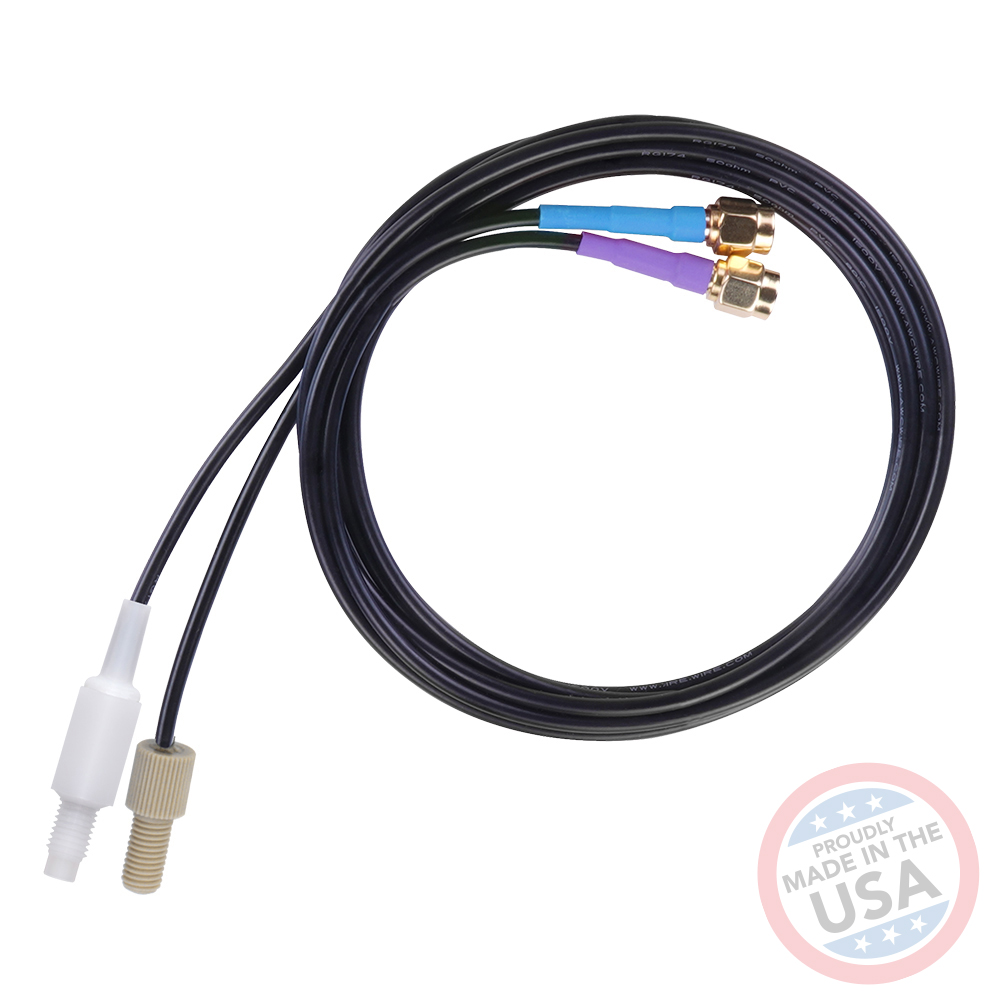

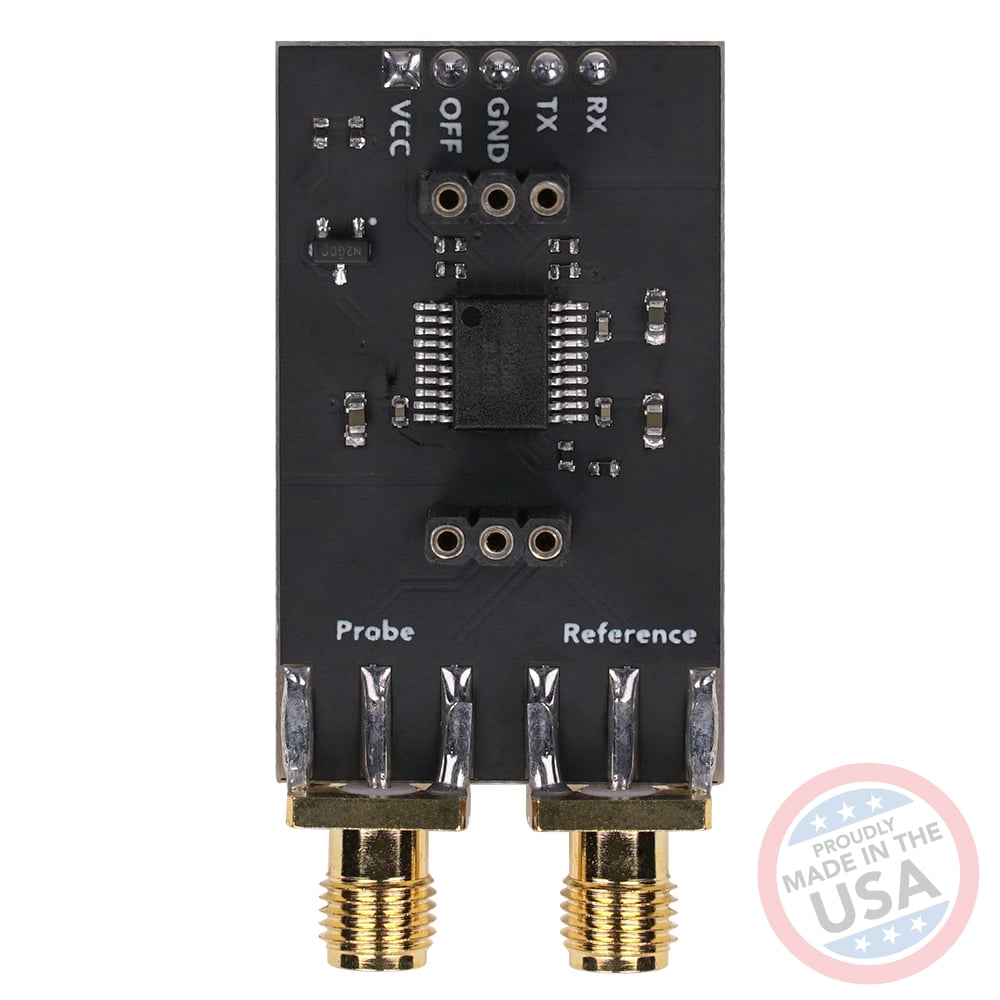

The Atlas Scientific Micro-ORP Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell ORP probe. A ½ cell probe works just like a normal ORP probe, but it consists of two separate pieces, the working electrode, and the reference electrode. The supplied connector board merges the two halves into one, just like a normal ORP probe.
