Conductivity Probe K 10

#ENV-40-EC-K10

You may also like…

$182.99

Add & Save

4+ units

$173.85

10+ units

$169.25

25+ units

$164.70

Over the years, we have tested an endless number of conductivity probe designs. Our research has shown us that not all conductivity probes are the same. Many lower-quality probes are susceptible to “fringe effect,” which makes the readings change when the probe is near an object. This effect makes it very difficult to take accurate readings. The Atlas Scientific line of conductivity probes has been designed to provide stable and precise readings free of fringe effect over a broad conductivity range.

Because conductivity probes don’t have any electrolyte that gets depleted, they only need to be calibrated during installation.

ReadsConductivity
Range 10 μS/cm − 1 S/cm
Accuracy +/ – 2%
Response time 90% in 1s
Temperature range °C 1 − 110 °C
Max pressure 200 PSI
Max depth 141m (463 ft)

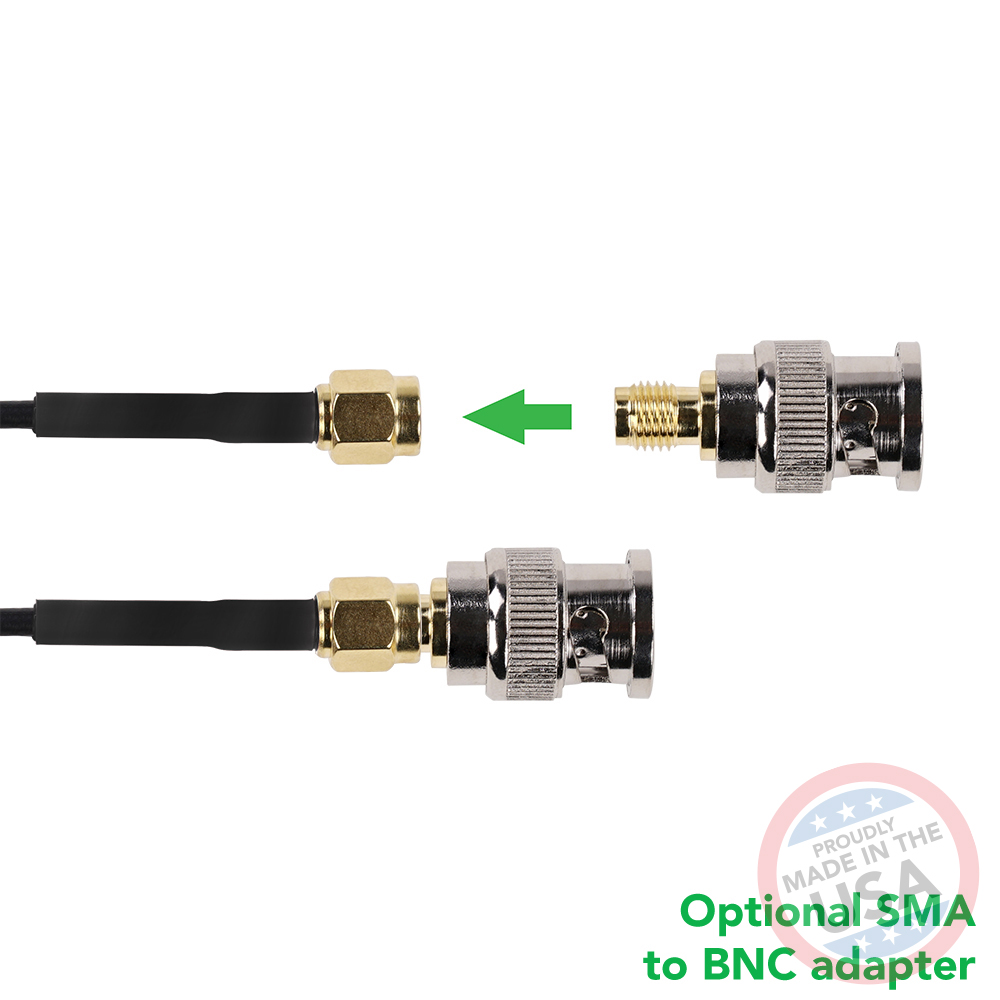

ConnectorMale SMA / Male BNC (optional)
Cable length 1 meter
Internal temperature sensor No
Time before recalibration ~10 years
Life expectancy~10 years

Over the years, we have tested an endless number of conductivity probe designs. Our research has shown us that not all conductivity probes are the same. Many lower-quality probes are susceptible to “fringe effect,” which makes the readings change when the probe is near an object. This effect makes it very difficult to take accurate readings. The Atlas Scientific line of conductivity probes has been designed to provide stable and precise readings free of fringe effect over a broad conductivity range.

Because conductivity probes don’t have any electrolyte that gets depleted, they only need to be calibrated during installation.

ReadsConductivity
Range 10 μS/cm − 1 S/cm
Accuracy +/ – 2%
Response time 90% in 1s
Temperature range °C 1 − 110 °C
Max pressure 200 PSI
Max depth 141m (463 ft)
ConnectorMale SMA / Male BNC (optional)
Cable length 1 meter
Internal temperature sensor No
Time before recalibration ~10 years
Life expectancy~10 years
