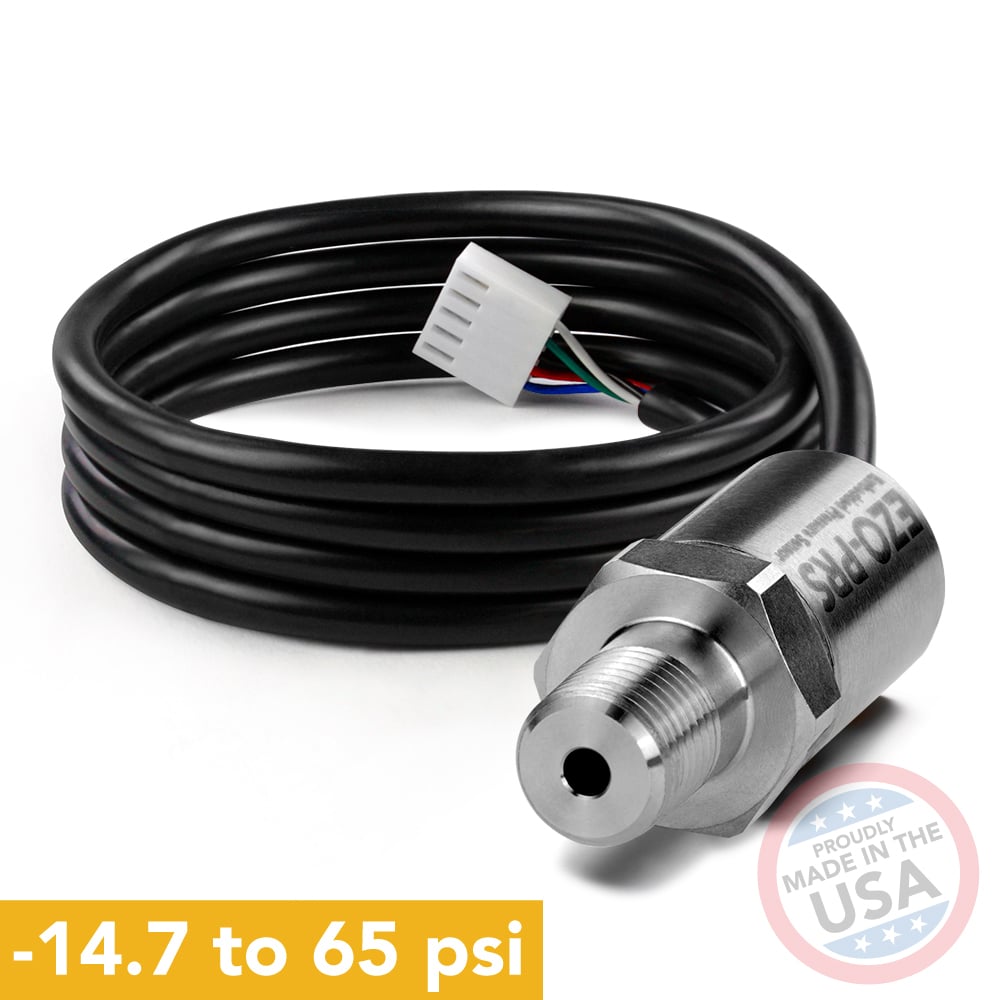

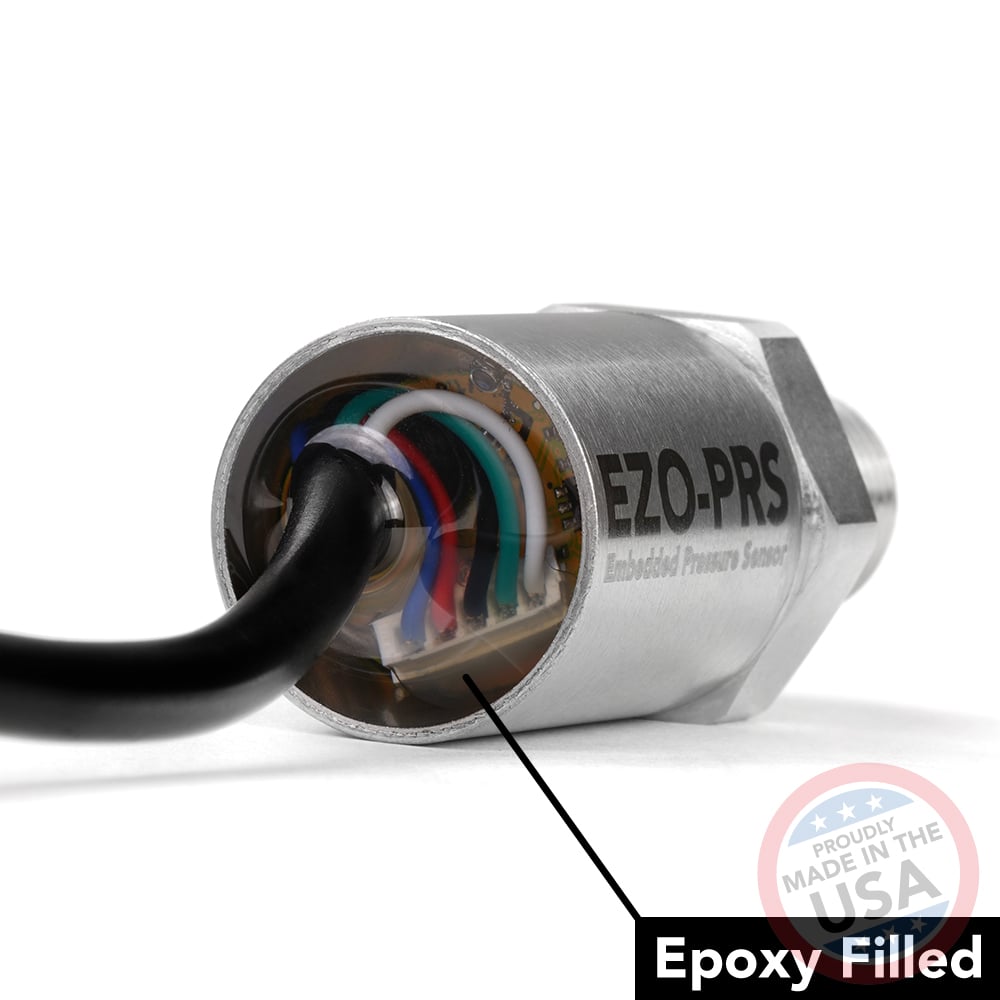

EZO-PRS™ Embedded Pressure Sensor
#EZO-PRS
You may also like…
Add & Save
|
4+ Units |
$119.70 |
|
10+ Units |
$116.55 |
|
25+ Units |
$113.40 |
Finding a good pressure sensor can be tough. Some seem so cheap they couldn’t possibly have any meaningful accuracy, while others are so expensive, how could anyone use them? The Atlas Scientific EZO-PRS is a digital pressure sensor that provides the accuracy you need at a reasonable cost. The sensor can read the pressure of a liquid, gas, or oil from 0-50 psi.
The EZO-PRS™ comes with:
One embedded pressure sensor, and one data cable with 5 pin male header.
Reads Pressure (Gauge)
psi (0 – 74.000) Default
atm (0 – 5.03)
bar (0 – 5.102)
kPa (0 – 510.212)
inches of water (0 – 2,050.36”)
cm of water (0 – 5,202.71cm)
Response time
1 reading per second
Resolution 0.001
Accuracy
+/- 2% (1 psi)
Threaded connection
1/4″ NPT
Cable
1 meter / 5 lead
Data protocol
UART & I2C
Default I2C address
106 (0x6A)
Data format
ASCII
Operating voltage 3.3V − 5V
Water resistant/dust proof IP67
