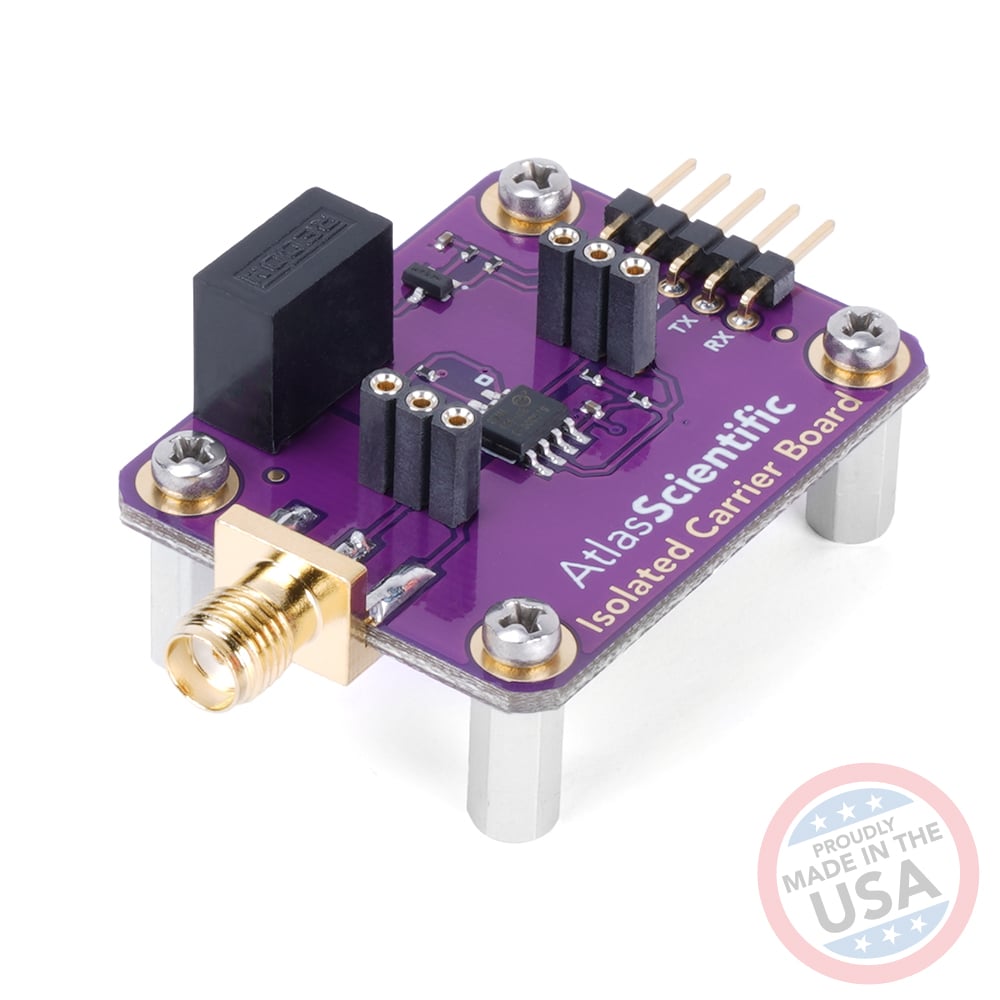

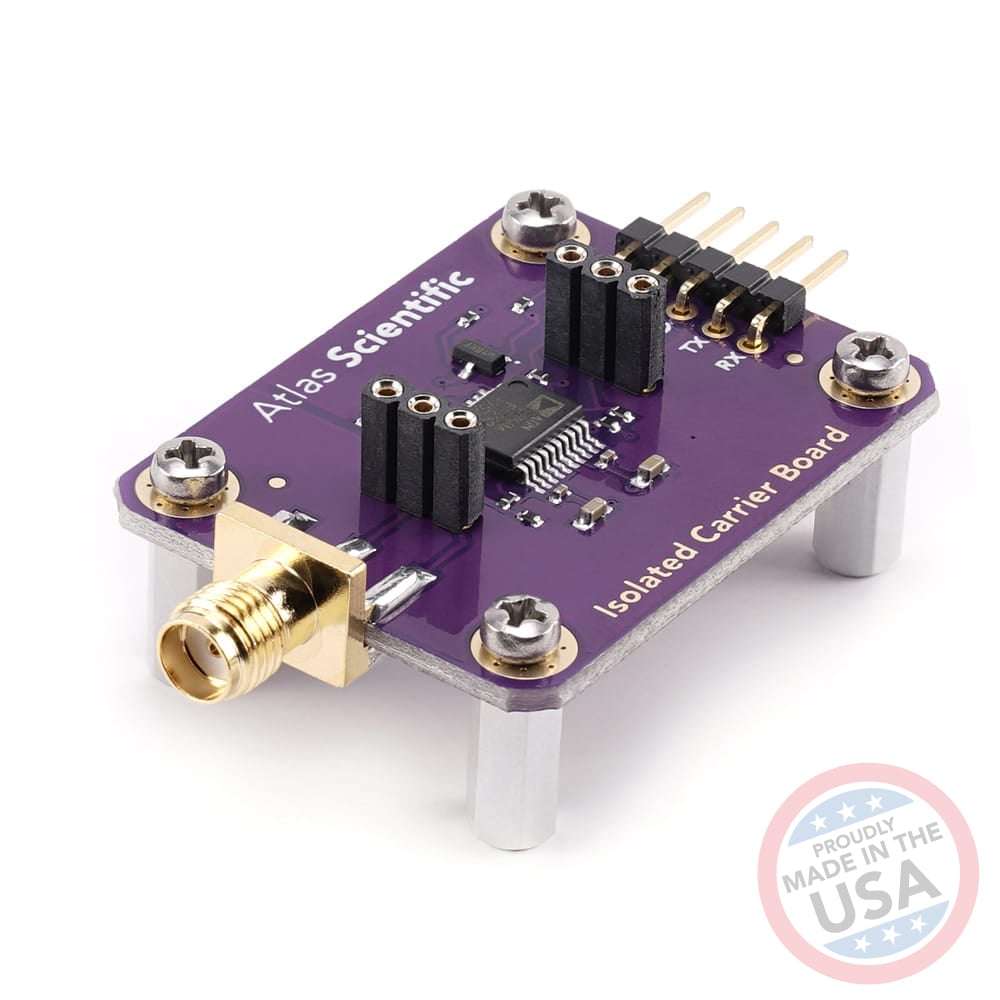

Electrically Isolated EZO™ Carrier Board


You may also like…


Add & Save

4+ units


10+ units


25+ units

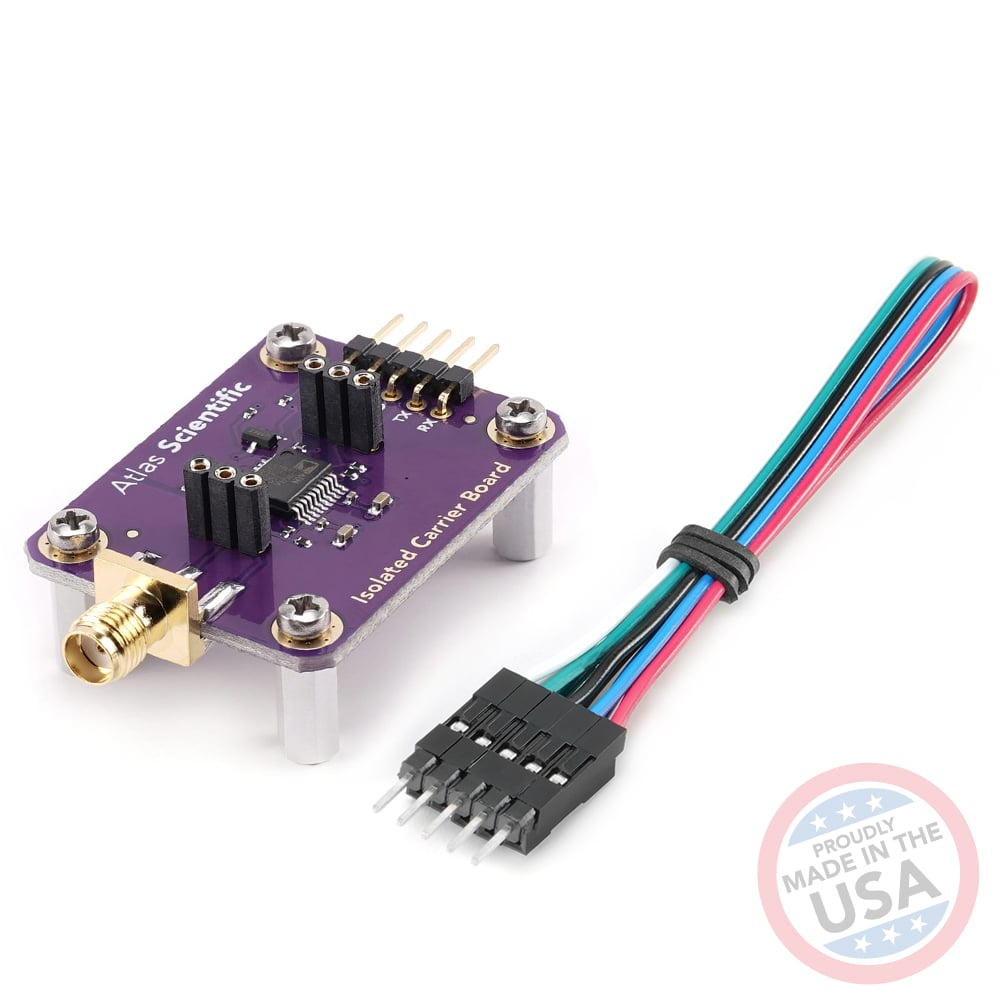

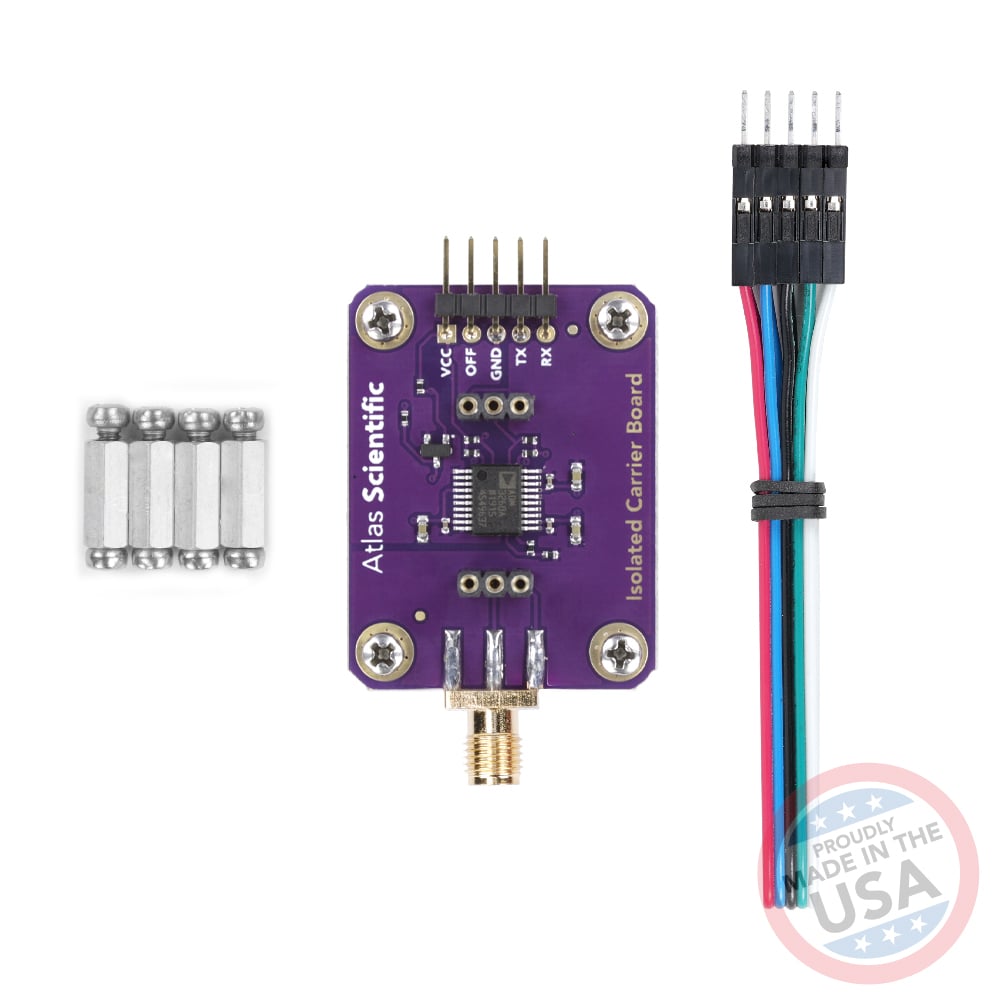

This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits. The Electrically isolated EZO™ carrier board is an efficient way to connect to one Atlas Scientific circuit to your CPU, eliminating the need for a bread board and external isolator. The five pins on top are left open for you to decide how to connect it to your system.

Data inputUART or I2C
Voltage input3.0V − 5.0V
Probe connectorFemale SMA
Current consumption5V – 28 mA
3.3V – 22 mA
Power saving mode (OFF pin)2.6mA

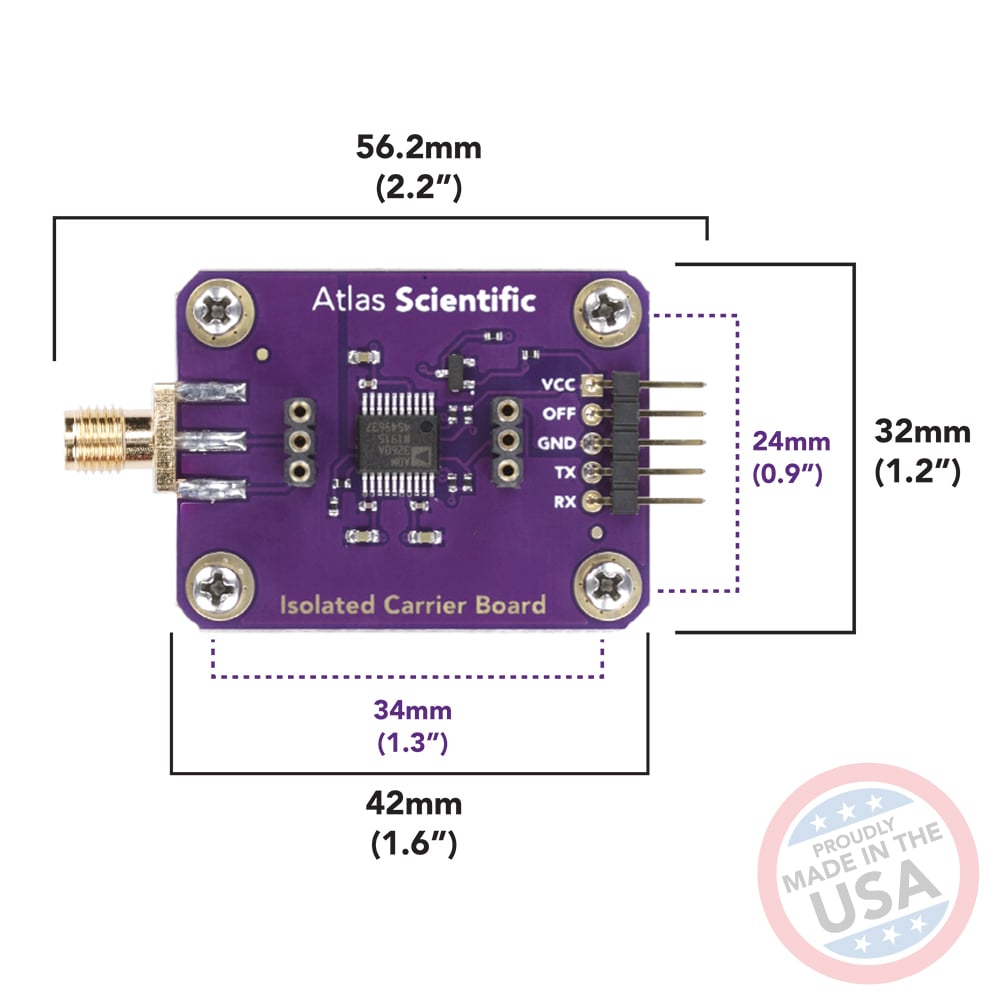

Carrier Board dimensions56.2mm x 32mm (2.2″ x 1.2″)
Weight25 grams
The Electrically Isolated EZO™ Carrier Board
does not come with EZO™ class devices.
