Wi-Fi Hydroponics Kit

#Wi-Fi-HK

You may also like…

$408.99

Clear
Add & Save

4+ Units

$388.50

10+ Units

$378.30

25+ Units

$368.10

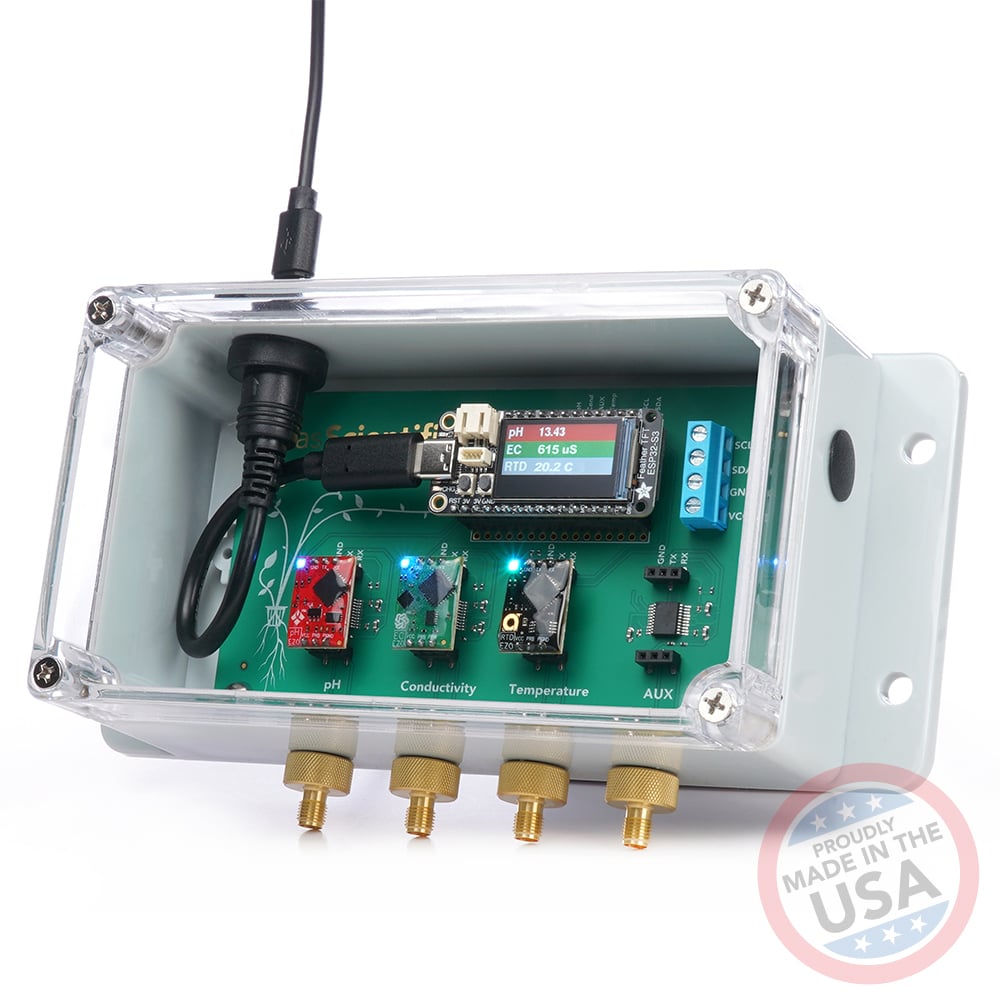

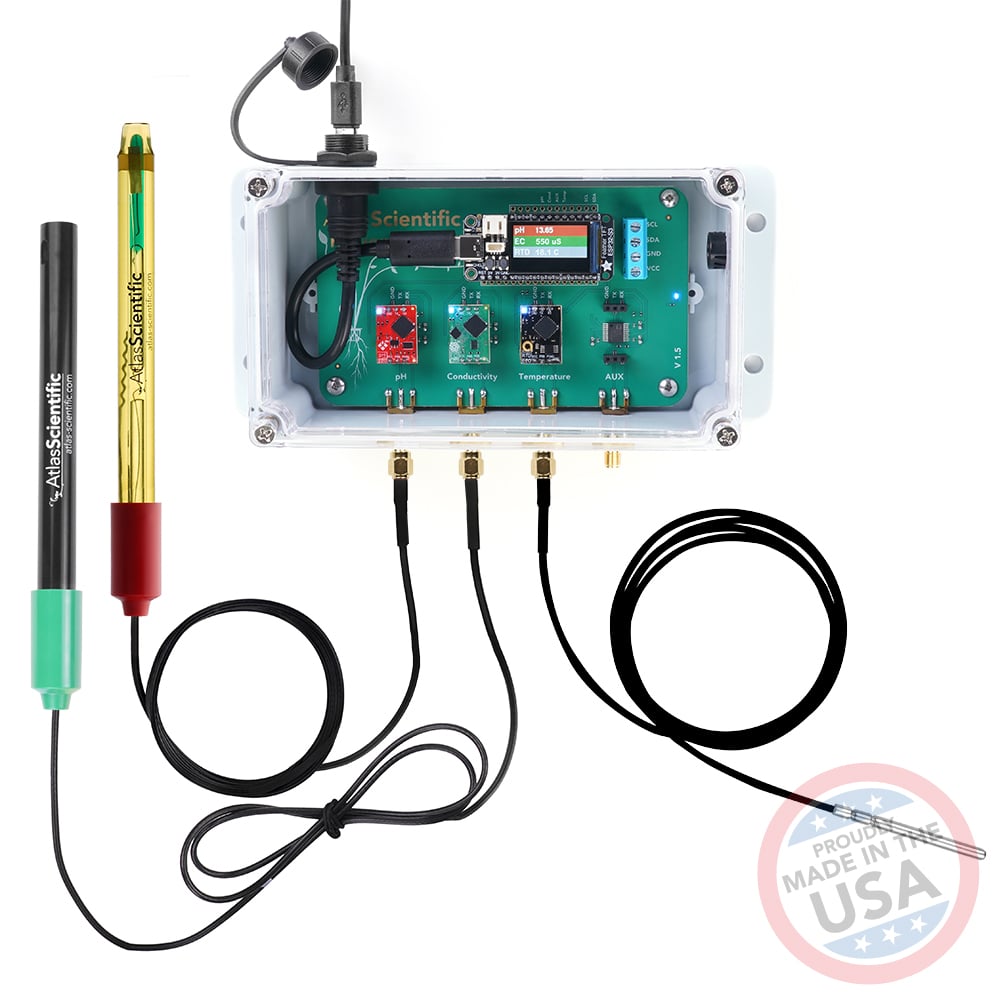

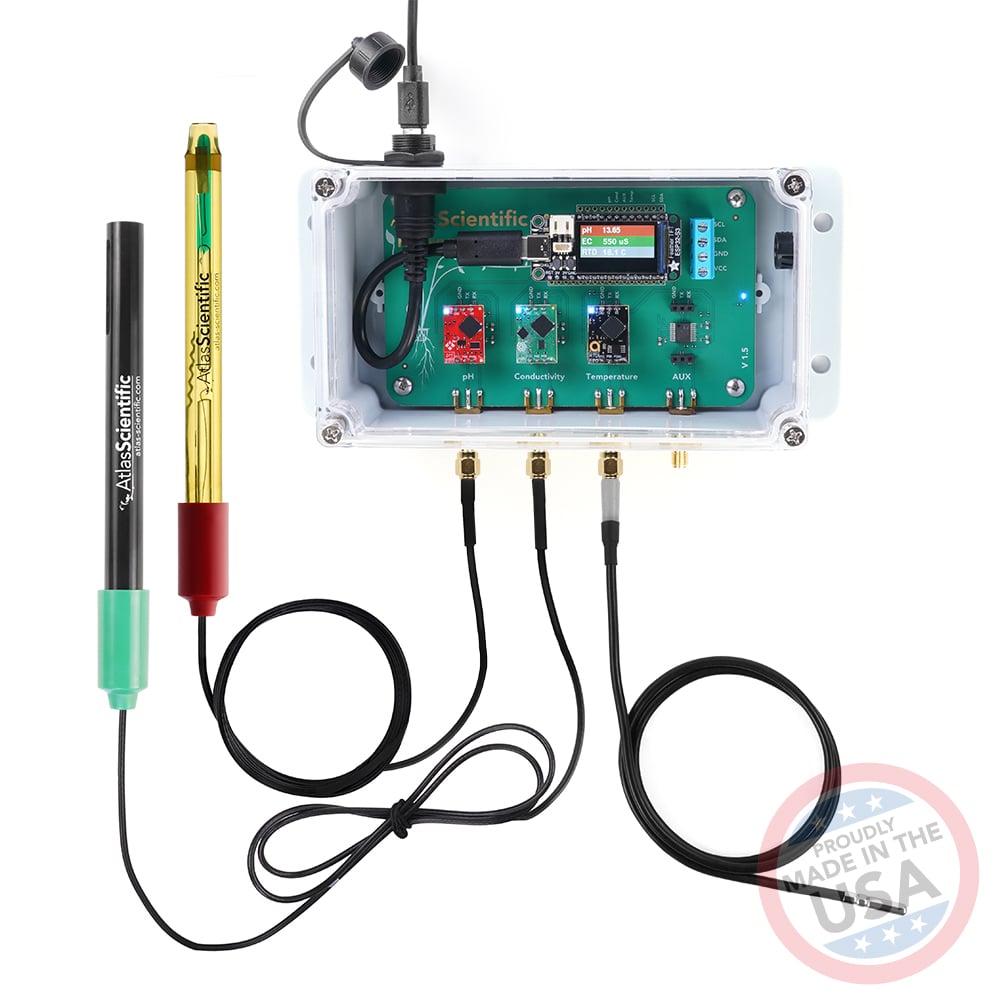

The Wi-Fi Hydroponics Meter Kit reads pH, Conductivity, and temperature. The pH and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

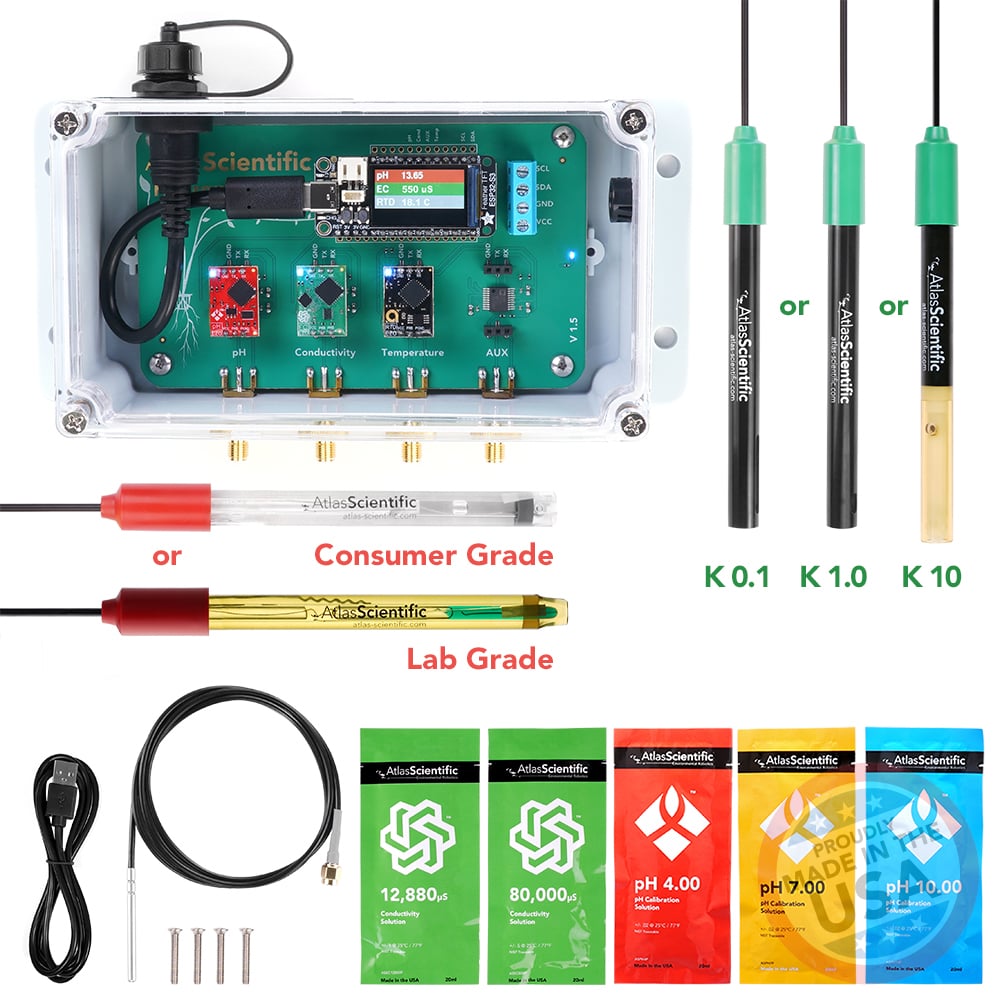

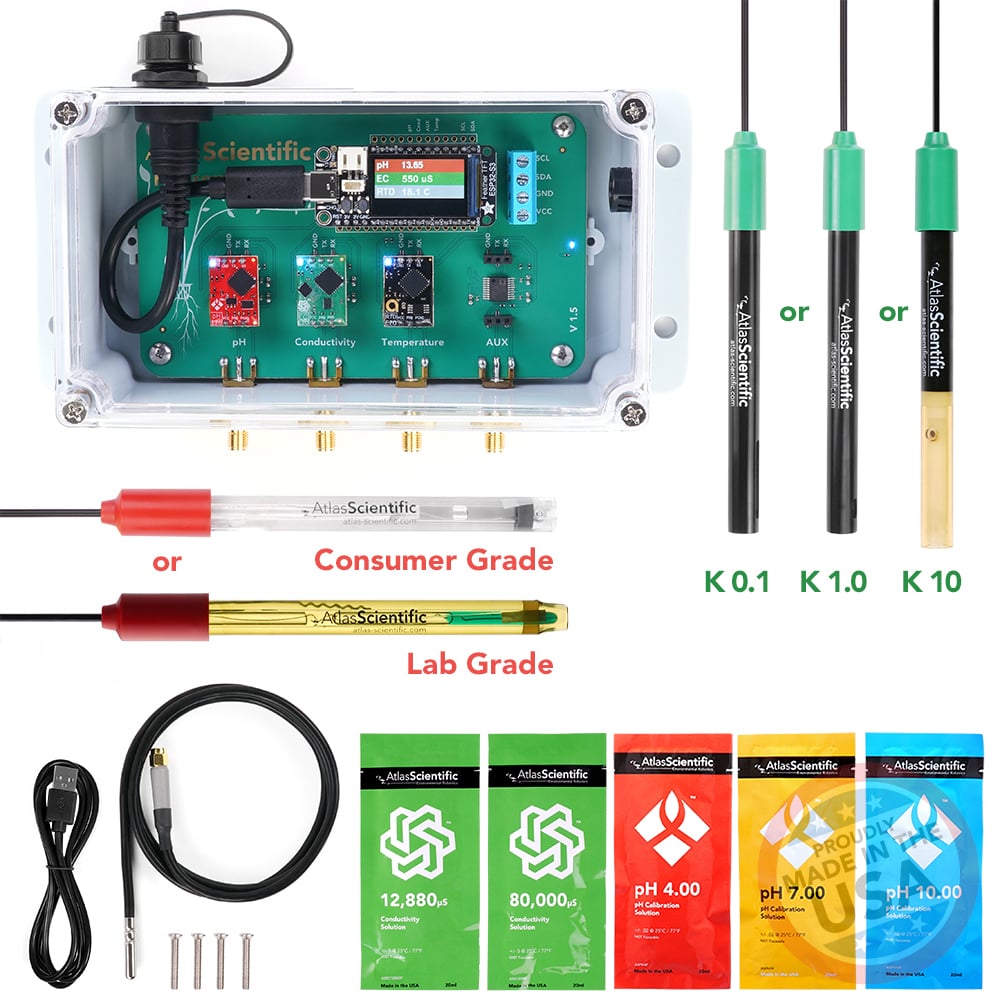

The Wi-Fi Hydroponics Meter Kit comes with:

1x Enclosure with hardware assembled within

1x EZO pH circuit
1x Consumer grade pH probe
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10)

1x EZO RTD Temperature circuit
1x PT-1000 temperature probe

1x EZO Conductivity circuit
1x Conductivity probe (K 0.1, K 1.0 or K10)
2x Conductivity calibration solutions (K 0.1, K 1.0 or K10)

• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud

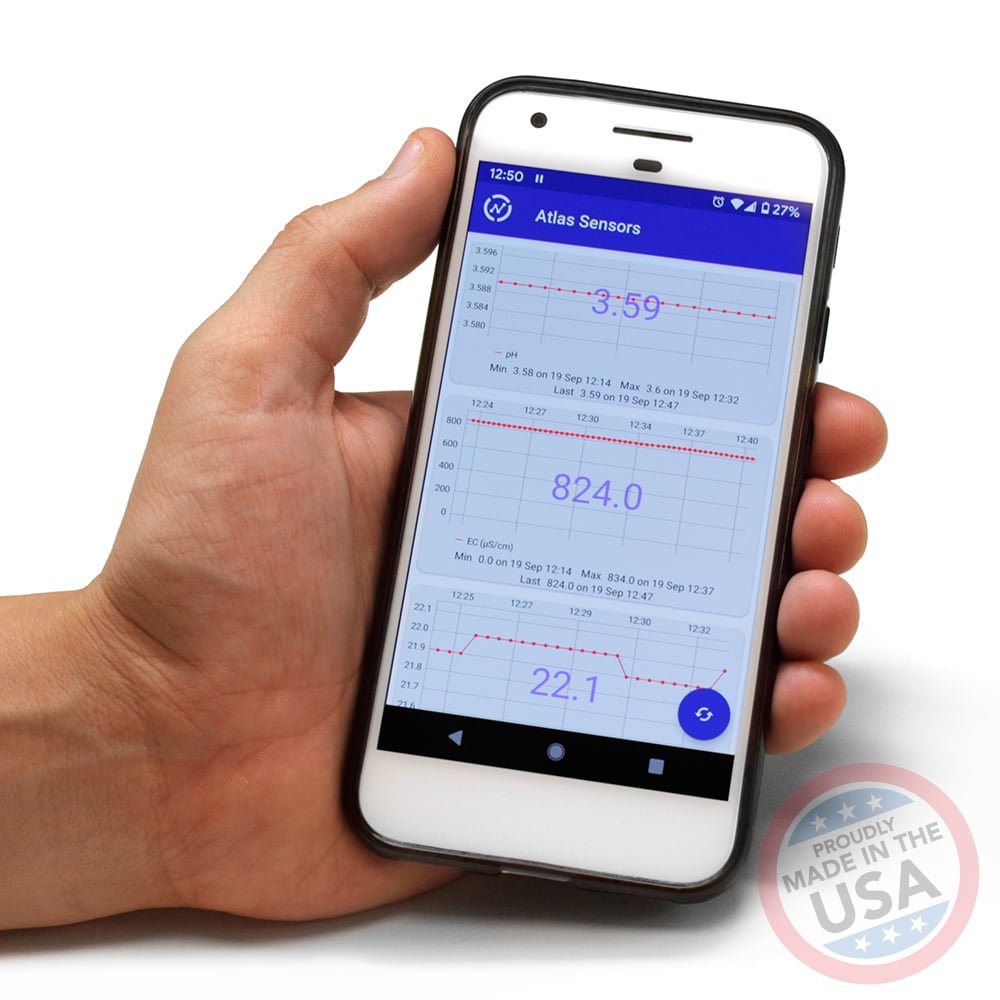

• Access to data on phone, tablet or PC
• Auto temperature compensation for pH and Conductivity
• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• Conductivity range 0 − 200K / resolution 1μS
• Operating voltage : 5V
• Current consumption : 310mA at 5V
• Three electrically isolated slots (pH, Conductivity and AUX)
• One auxiliary (AUX) slot for an additional sensor
• Calibration solutions included.
• IP64 (dust and water splash proof)
I2C mode only

The Wi-Fi Hydroponics Meter Kit reads pH, Conductivity, and temperature. The pH and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

The Wi-Fi Hydroponics Meter Kit comes with:

1x Enclosure with hardware assembled within

1x EZO pH circuit
1x Consumer grade pH probe
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10)

1x EZO RTD Temperature circuit
1x PT-1000 temperature probe

1x EZO Conductivity circuit
1x Conductivity probe (K 0.1, K 1.0 or K10)
2x Conductivity calibration solutions (K 0.1, K 1.0 or K10)

• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud
• Access to data on phone, tablet or PC
• Auto temperature compensation for pH and Conductivity
• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• Conductivity range 0 − 200K / resolution 1μS
• Operating voltage : 5V
• Current consumption : 310mA at 5V
• Three electrically isolated slots (pH, Conductivity and AUX)
• One auxiliary (AUX) slot for an additional sensor
• Calibration solutions included.
• IP64 (dust and water splash proof)
I2C mode only
