The Wi-Fi Pool Kit reads pH, ORP, and temperature. The pH readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

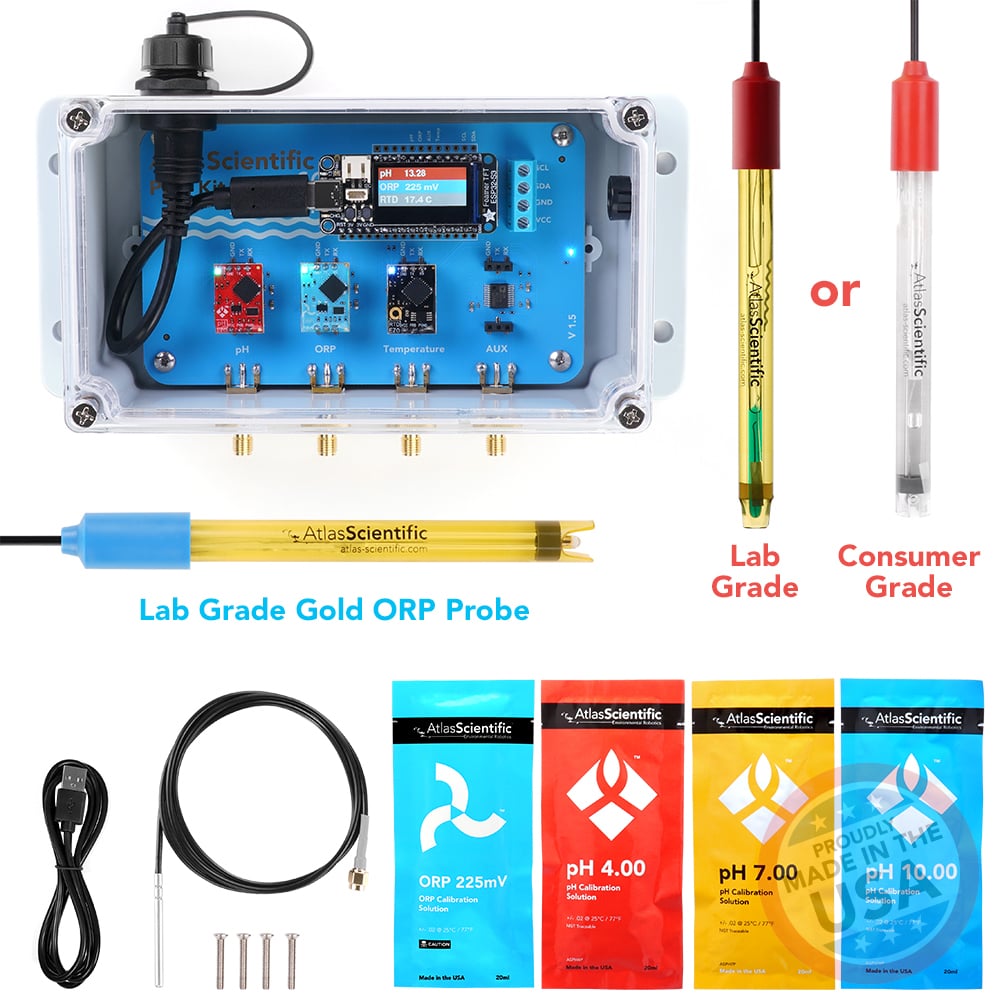

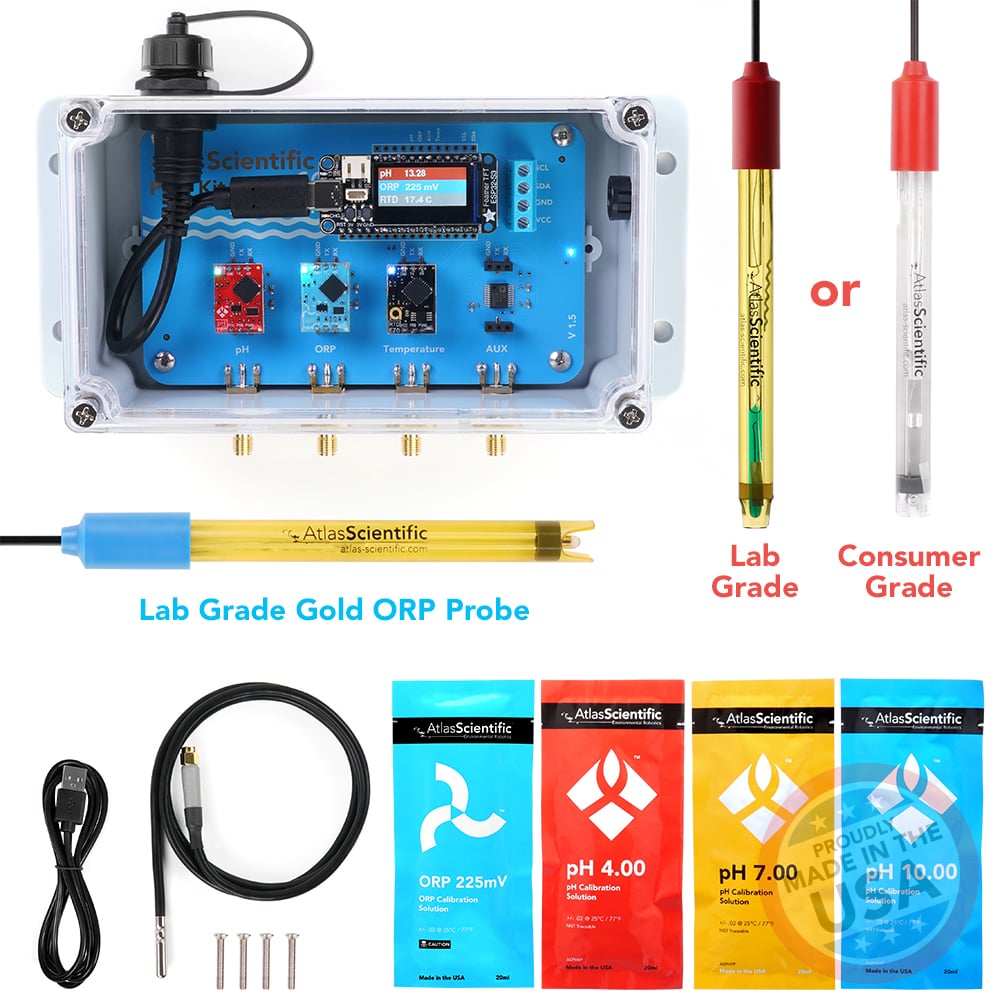

The Wi-Fi Pool Kit comes with:

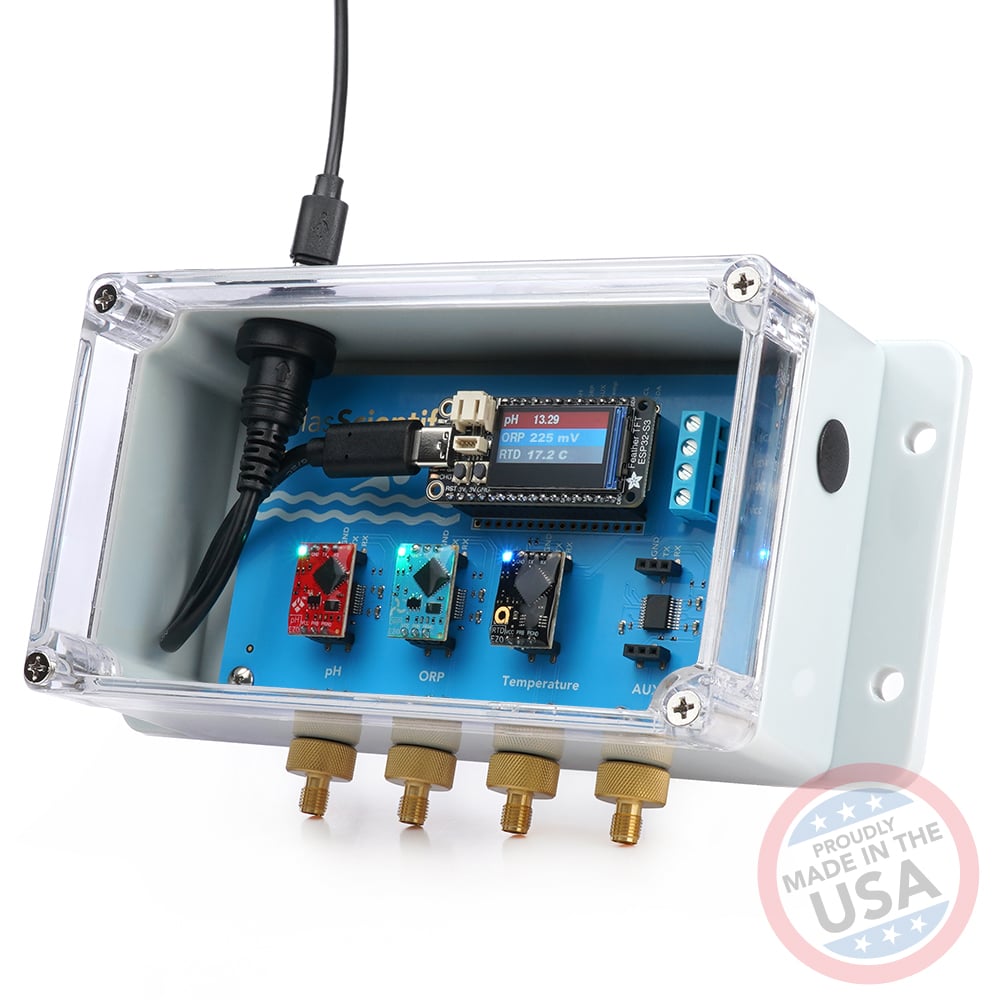

1x Enclosure with hardware assembled within
(includes 1x 3′ Micro USB cable)
1x EZO pH circuit
1x EZO ORP circuit
1x EZO RTD Temperature circuit
1x 20ml ORP 225mV calibration solution pouches
3x 20ml calibration solution pouches (1x pH 4, 1x pH 7 and 1x pH 10)

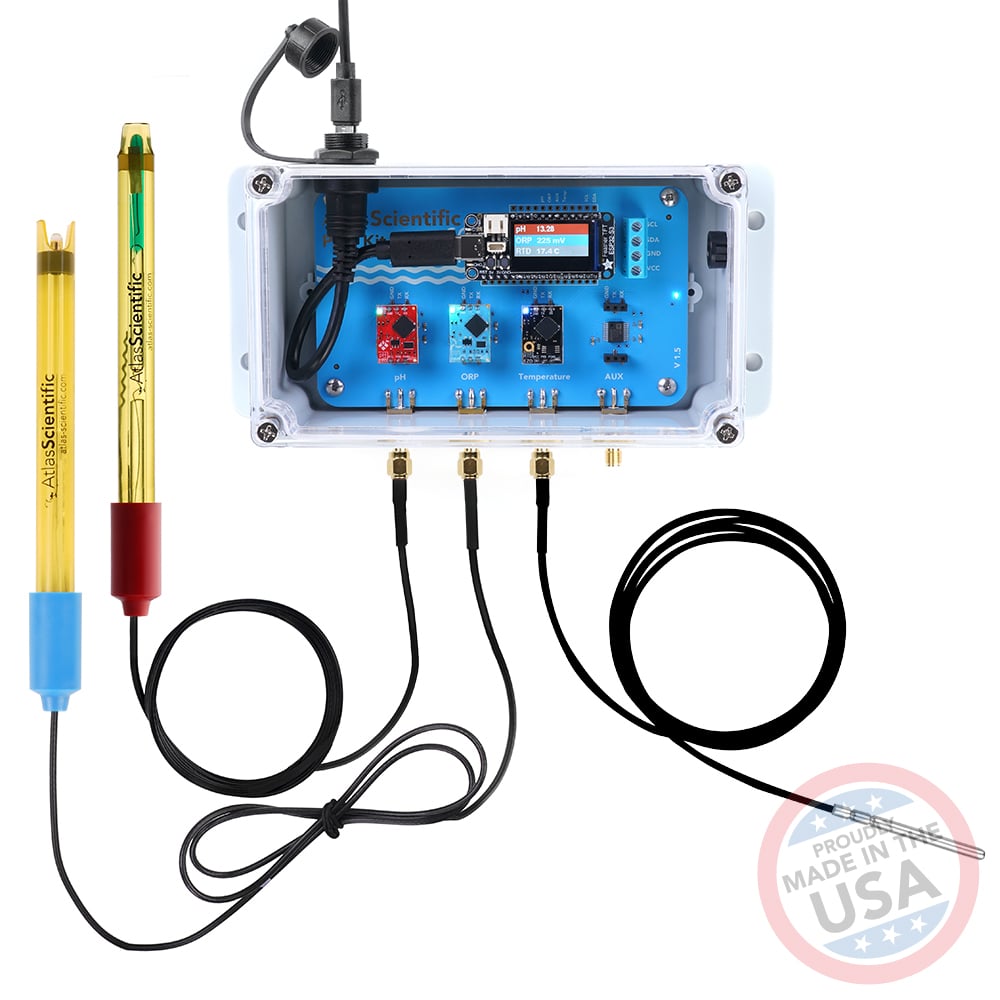

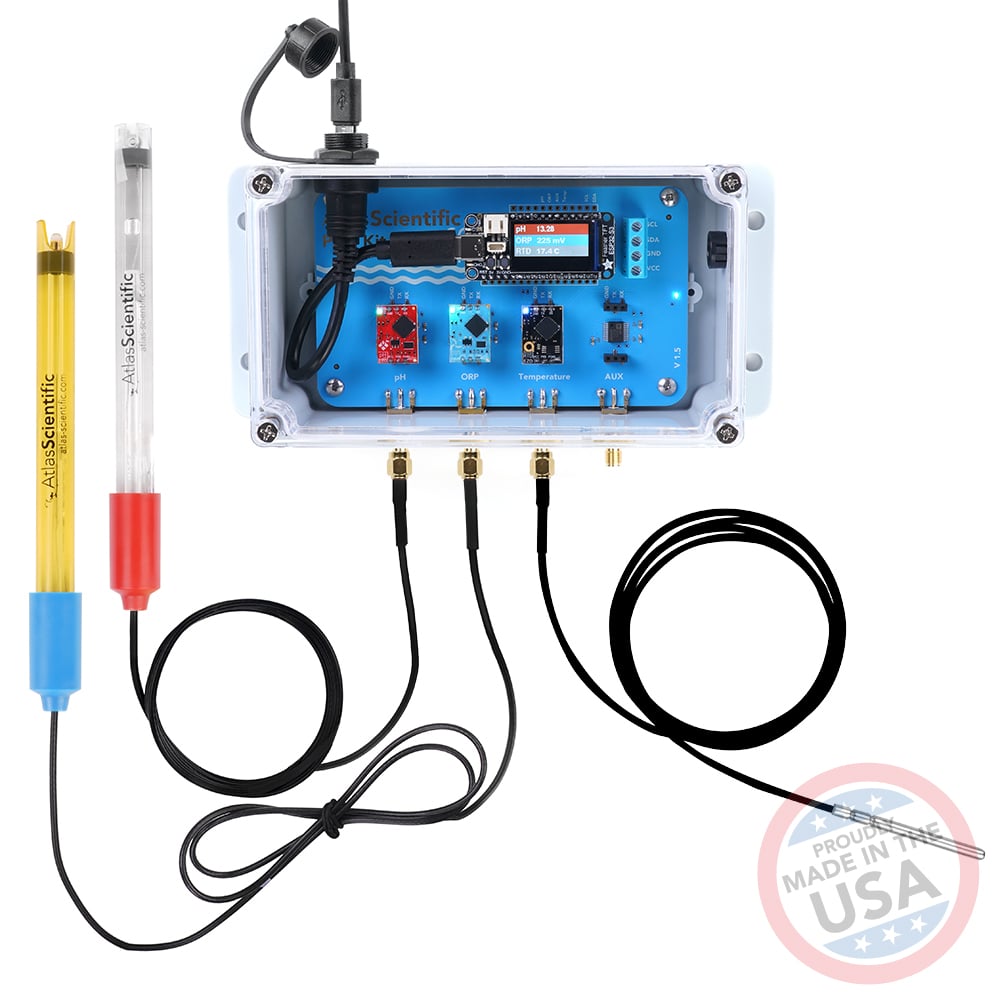

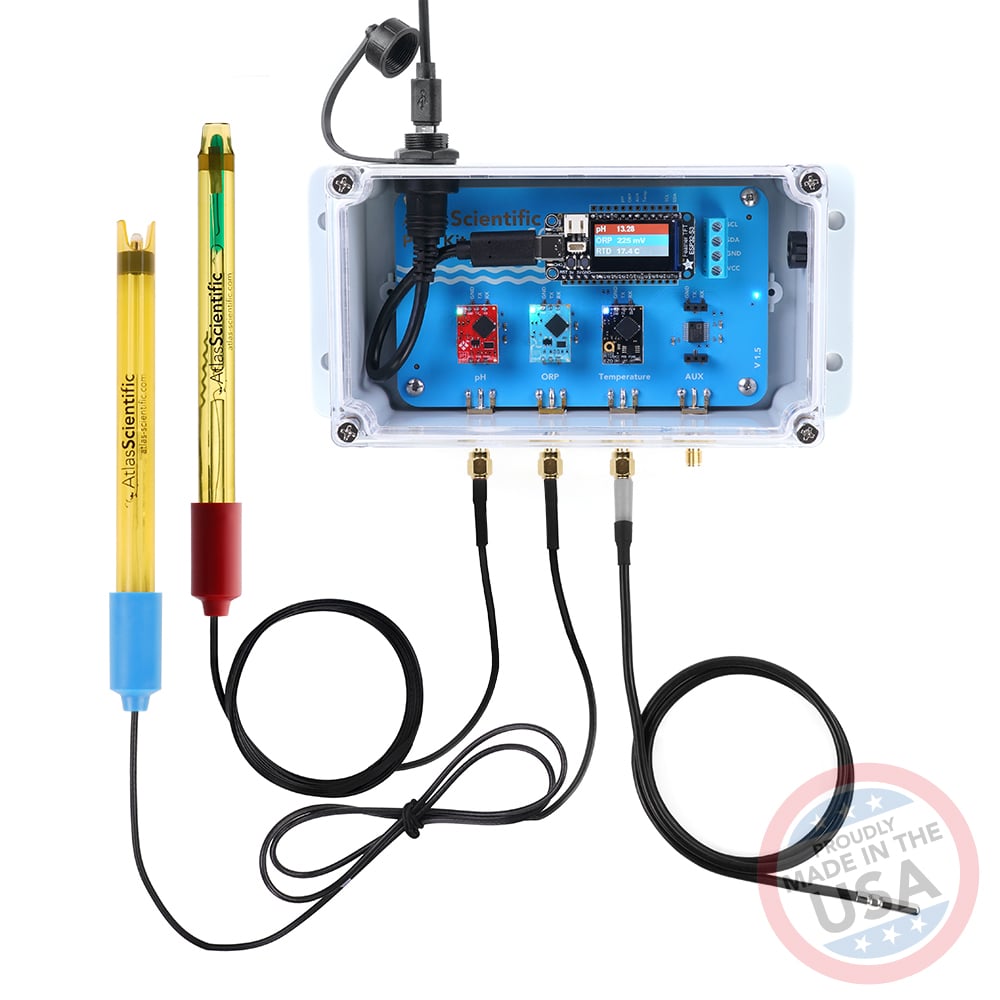

Your choice of…
1x Consumer grade pH probe
1x Consumer grade ORP probe
1x Standard PT-1000 temperature probe
OR
1x Industrial pH/ORP/Temp probe
• No soldering required • No programming necessary
• Automatically uploads data to ThingSpeak cloud

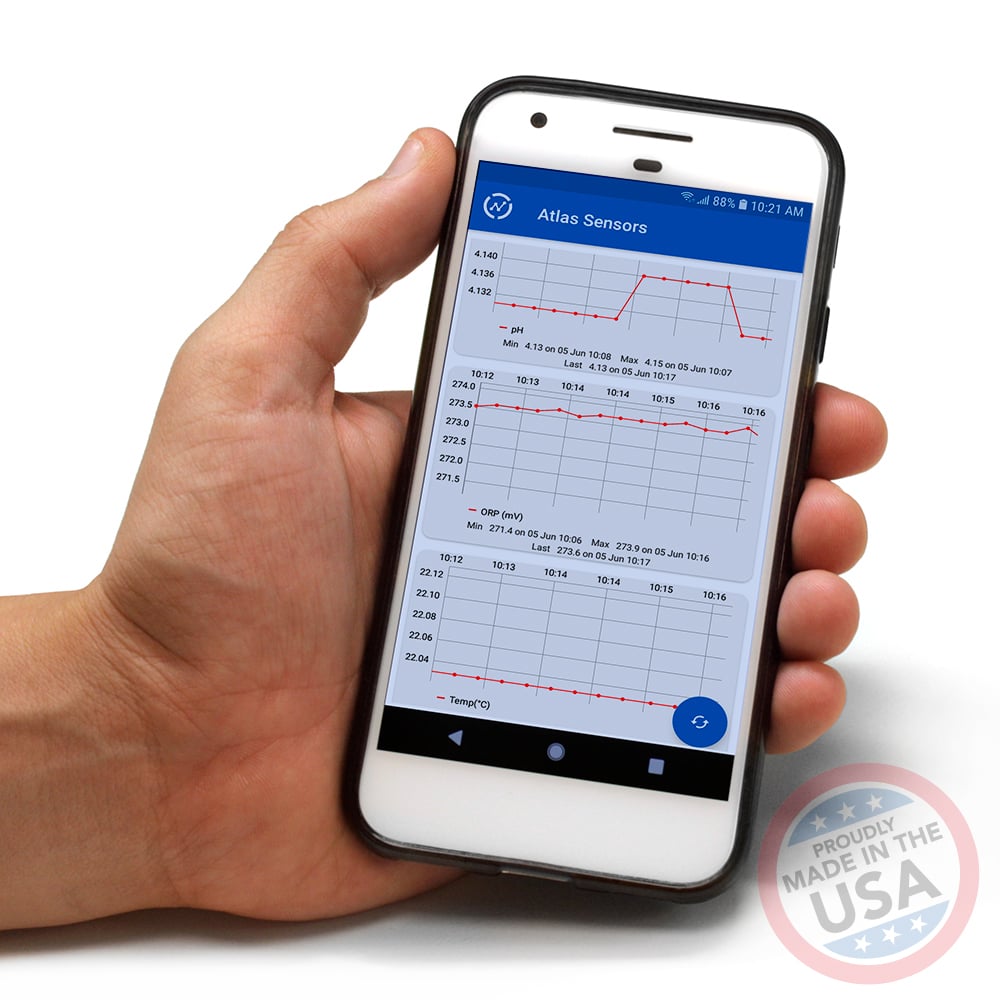

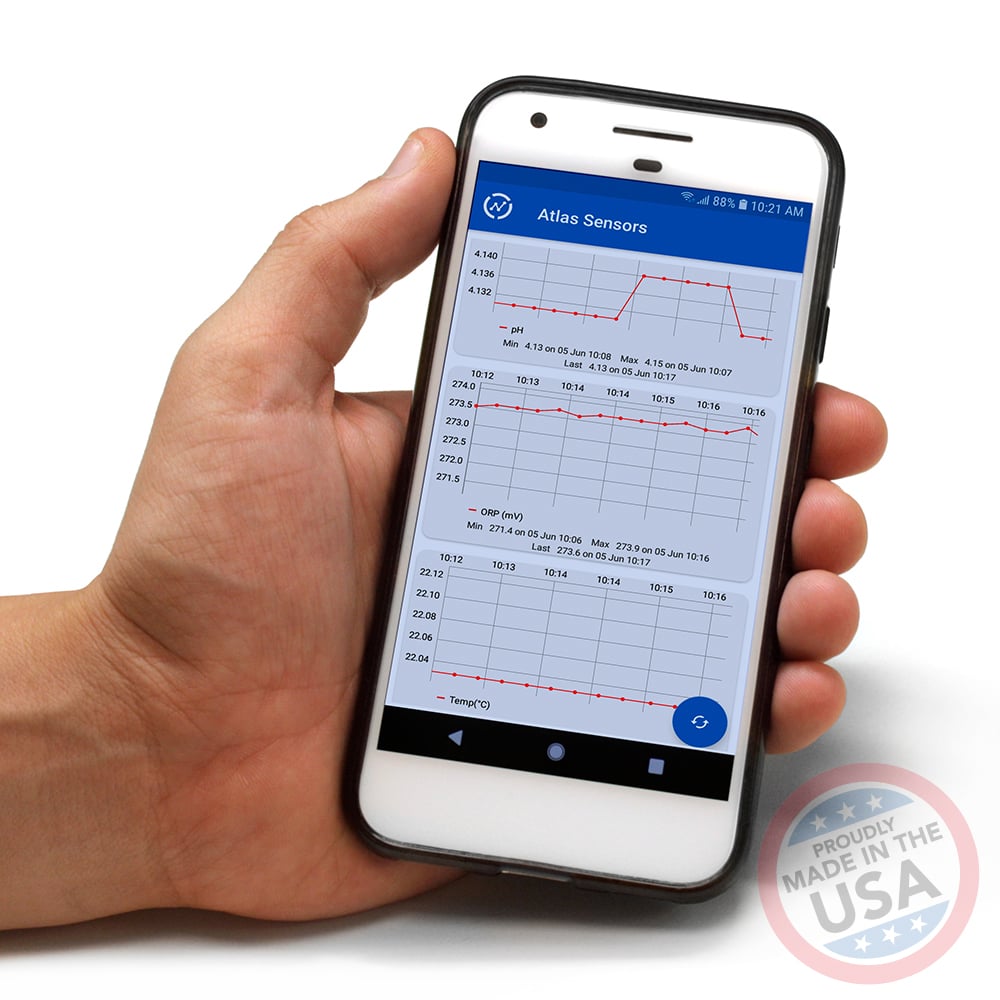

• Access to data on phone, tablet or PC
• Auto temperature compensation for pH

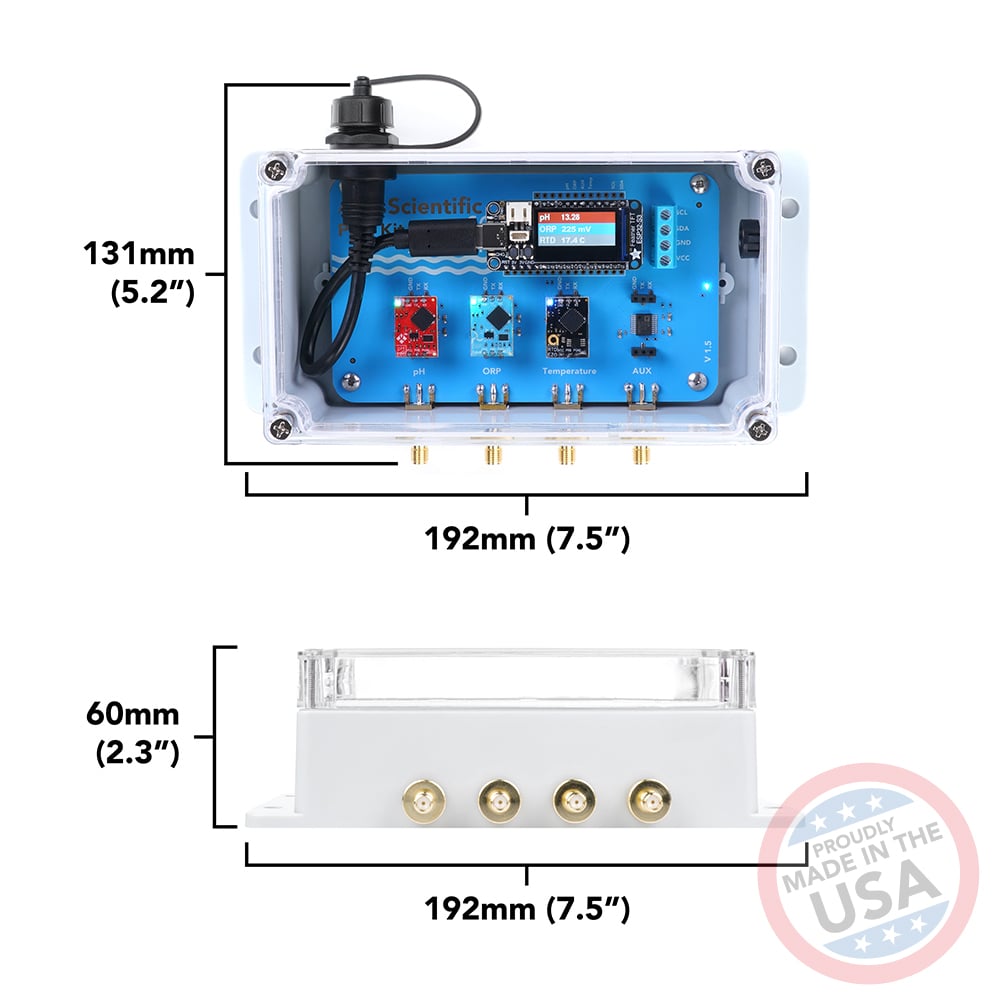

• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• ORP range +/-1100mV • Operating voltage : 5V • Current consumption : 280mA at 5V • Three electrically isolated slots (pH, ORP and AUX) • One auxiliary (AUX) slot for an additional sensor • Calibration solutions included. • IP64 (dust and water splash proof) • I2C mode only
