TRI-PMP-BX™

#TRI-PMP-BX

You may also like…

$499.99 USD

Add & Save

4+ units

$475.00

10+ units

$462.50

25+ units

$450.00

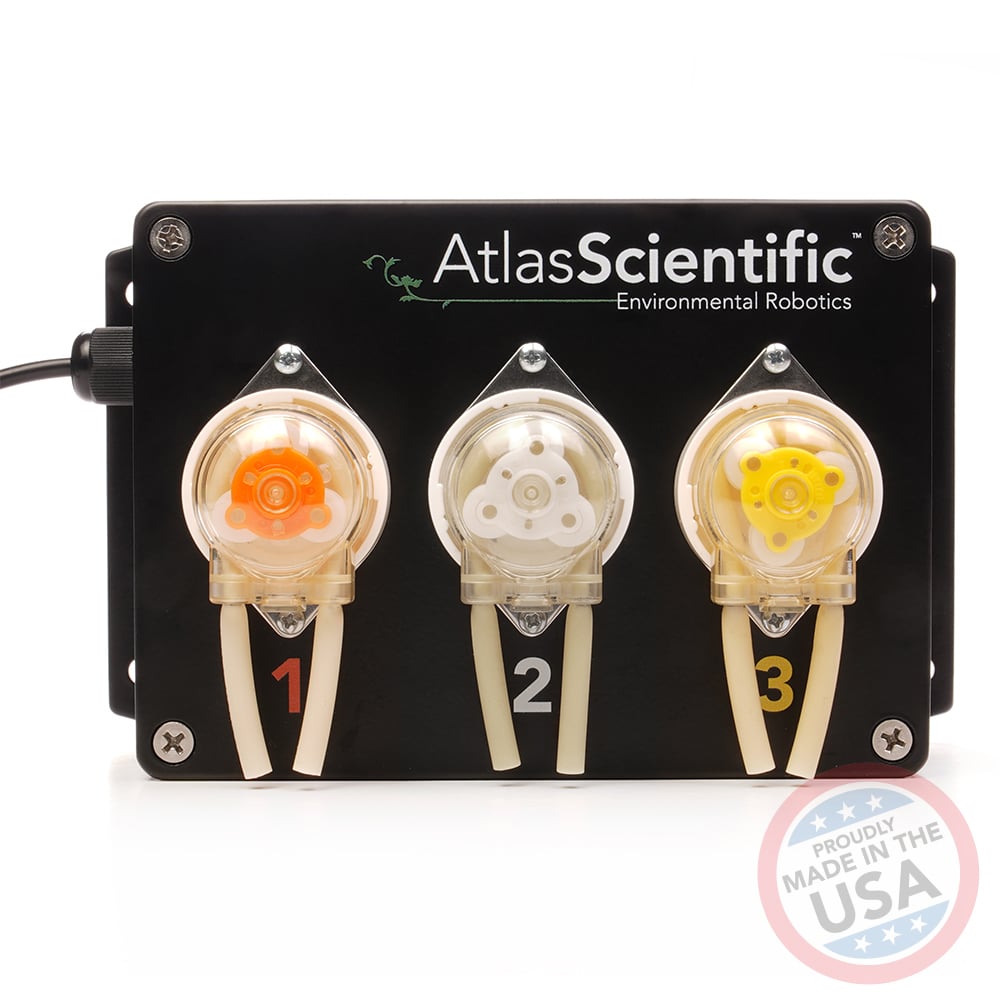

The TRI-PMP-BX™ system makes it easy to embed 3 peristaltic pumps into your machine. Each pump can be individually controlled using commands sent through the I2C bus. All Three pumps can run at the same time.

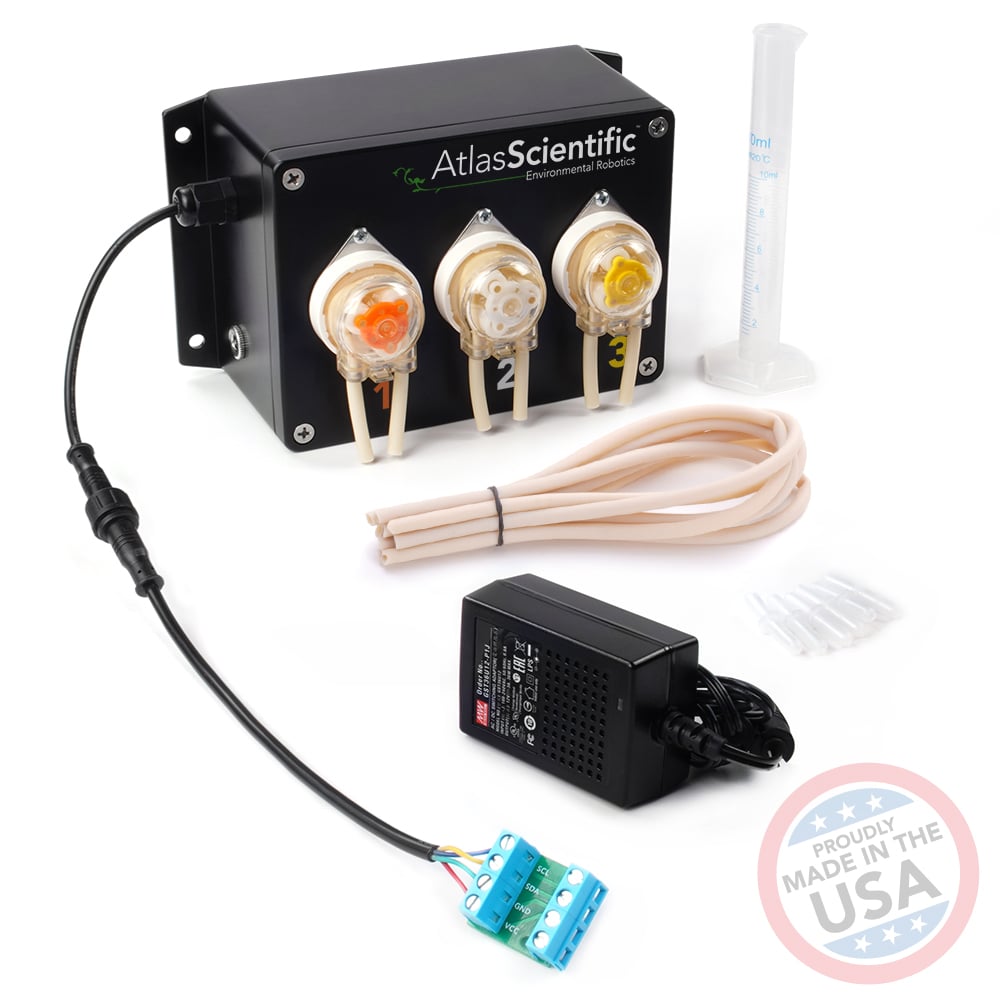

The TRI-PMP-BX™ system comes with:
Three peristaltic pumps with controller boards; inside an aluminum enclosure, 6 inline tubing connectors, 6 x 30 cm long pump tubes,
24 volt power supply, and a 10ml graduated cylinder (for calibration).

Enclosure:

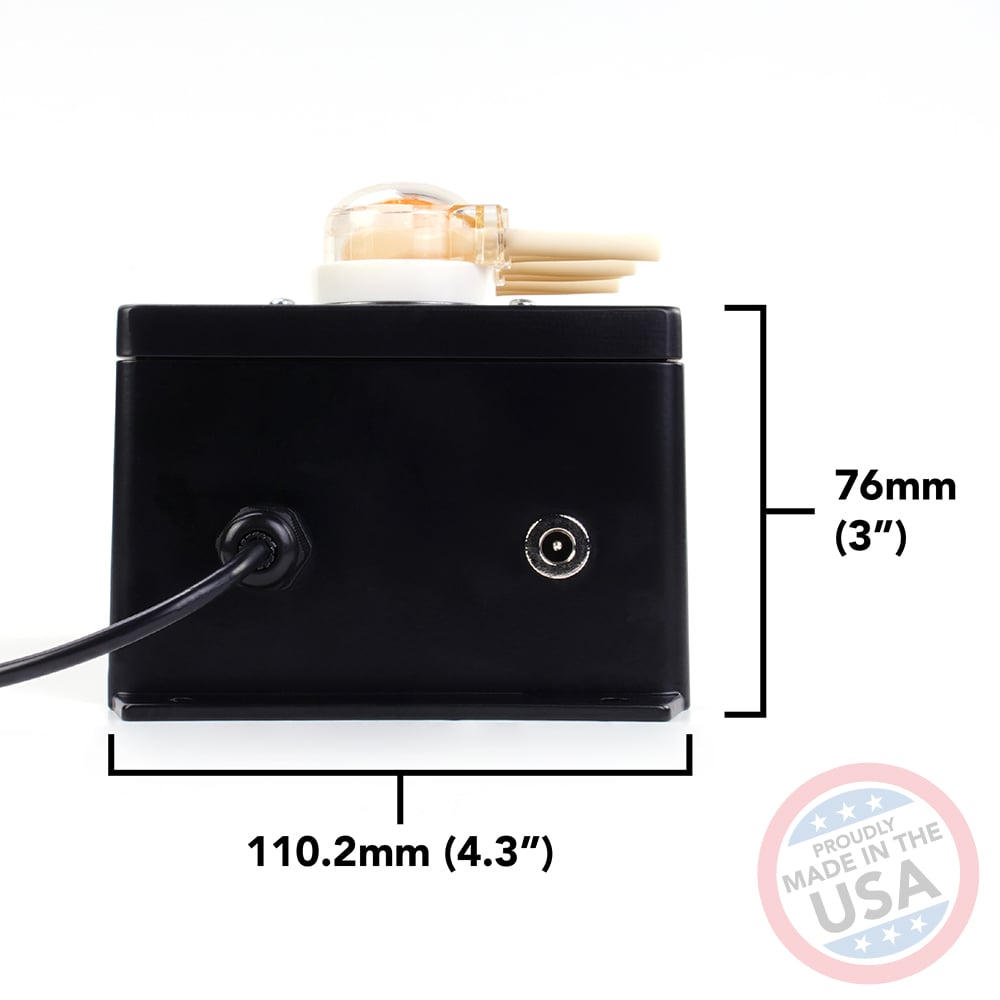

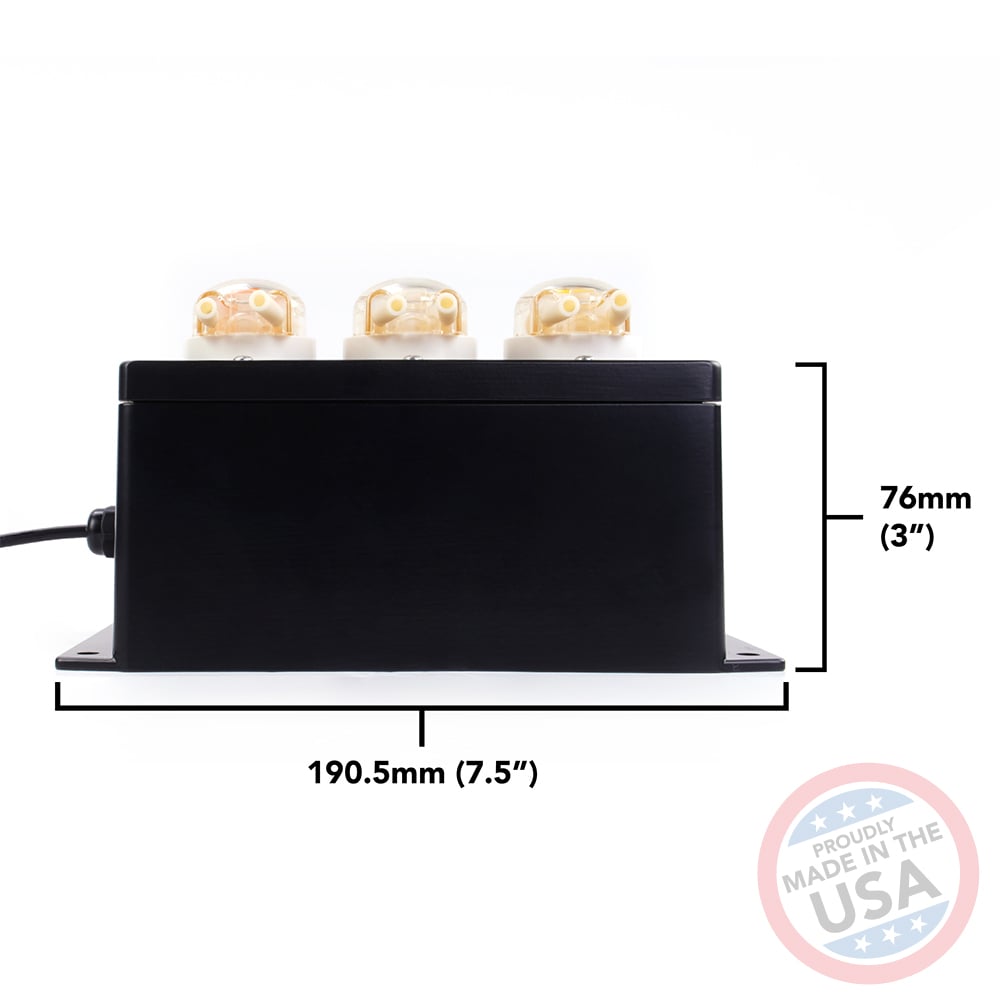

SizeMetric: L = 190.5mm x W = 110.2mm x H = 76mm
Inch: L = 7.5″ x W = 4.3″ x H = 3″
Enclosure protection IP-64
Enclosure material Body: Black powder-coated aluminum
Screws: Stainless steel
Pump:
Flow rate 0.5ml to 105ml/mins (per pump)
Accuracy+/- 1%
Modes of operationContinuous dispensing (per pump)
Volume dispensing (per pump)
Dose over time mode (per pump)
Constant flow rate (per pump)
Dispense at startup (per pump)
Connector 5 lead data cable
CalibrationSingle point
Supplied tubing 15.24 cm
Tubing size Any 5mm O.D. tubing
Data protocol I2C
Default I2C address 56 (0x38)
57 (0x39)
58 (0x3A)
Operating voltage 3.3V – 5V (logic)
12V – 24V (motor)
Pump head 8.1 meters (26.5’)
Data format ASCII
Food safeYes

The TRI-PMP-BX™ system makes it easy to embed 3 peristaltic pumps into your machine. Each pump can be individually controlled using commands sent through the I2C bus. All Three pumps can run at the same time.

The TRI-PMP-BX™ system comes with:
Three peristaltic pumps with controller boards; inside an aluminum enclosure, 6 inline tubing connectors, 6 x 30 cm long pump tubes,
24 volt power supply, and a 10ml graduated cylinder (for calibration).

Enclosure:
SizeMetric: L = 190.5mm x W = 110.2mm x H = 76mm
Inch: L = 7.5″ x W = 4.3″ x H = 3″
Enclosure protection IP-64
Enclosure material Body: Black powder-coated aluminum
Screws: Stainless steel
Pump:
Flow rate 0.5ml to 105ml/mins (per pump)
Accuracy+/- 1%
Modes of operationContinuous dispensing (per pump)
Volume dispensing (per pump)
Dose over time mode (per pump)
Constant flow rate (per pump)
Dispense at startup (per pump)
Connector 5 lead data cable
CalibrationSingle point
Supplied tubing 15.24 cm
Tubing size Any 5mm O.D. tubing
Data protocol I2C
Default I2C address 56 (0x38)
57 (0x39)
58 (0x3A)
Operating voltage 3.3V – 5V (logic)
12V – 24V (motor)
Pump head 8.1 meters (26.5’)
Data format ASCII
Food safeYes
