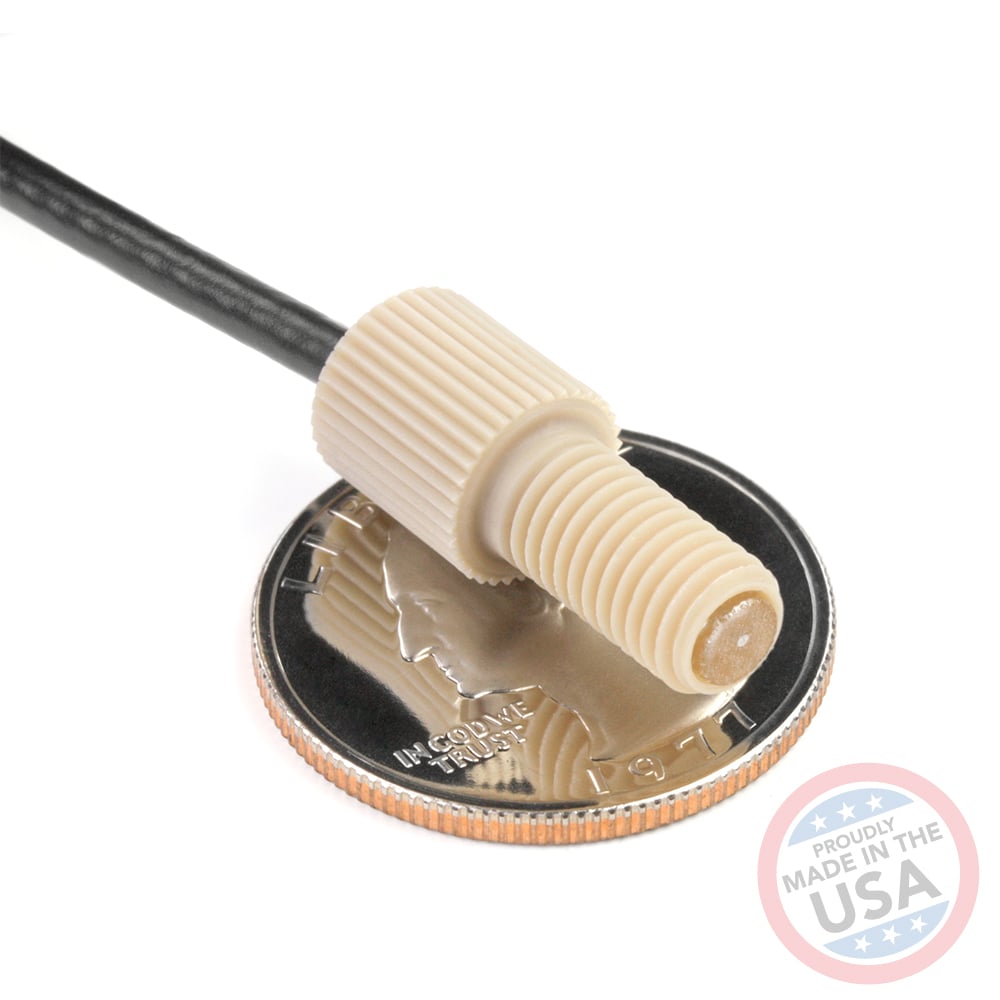

The Atlas Scientific Micro-ORP Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell ORP probe. A ½ cell probe works just like a normal ORP probe, but it consists of two separate pieces, the working electrode, and the reference electrode. The supplied connector board merges the two halves into one, just like a normal ORP probe.

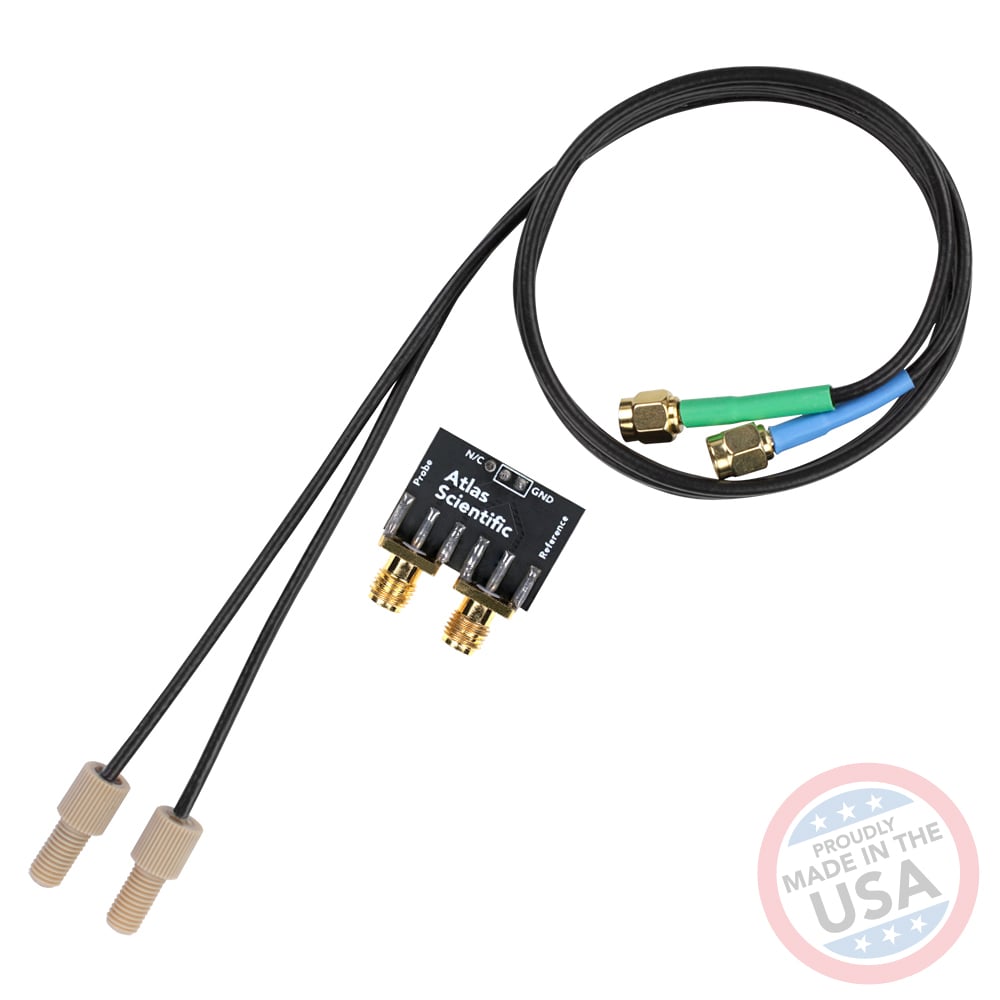

• 1 Micro ORP Probe | |
• 1 Micro Reference Probe | |
• 1 Half Cell SMA Breakout Board | |
Reads | ORP |
Range | -2000mV – 2000mV |
Accuracy | +/– 1mV |
Response time | 95% in 1s |
Temperature range °C | -5 − 90 °C |
Max pressure | 150 PSI |
Max depth | 60m (197 ft) |
Connector | Male SMA |
Cable length | 61cm (2′) |
Internal temperature sensor | No |
Time before recalibration | ~1 month |
Life expectancy | ~6 − 12 months |
