Micro pH Probe

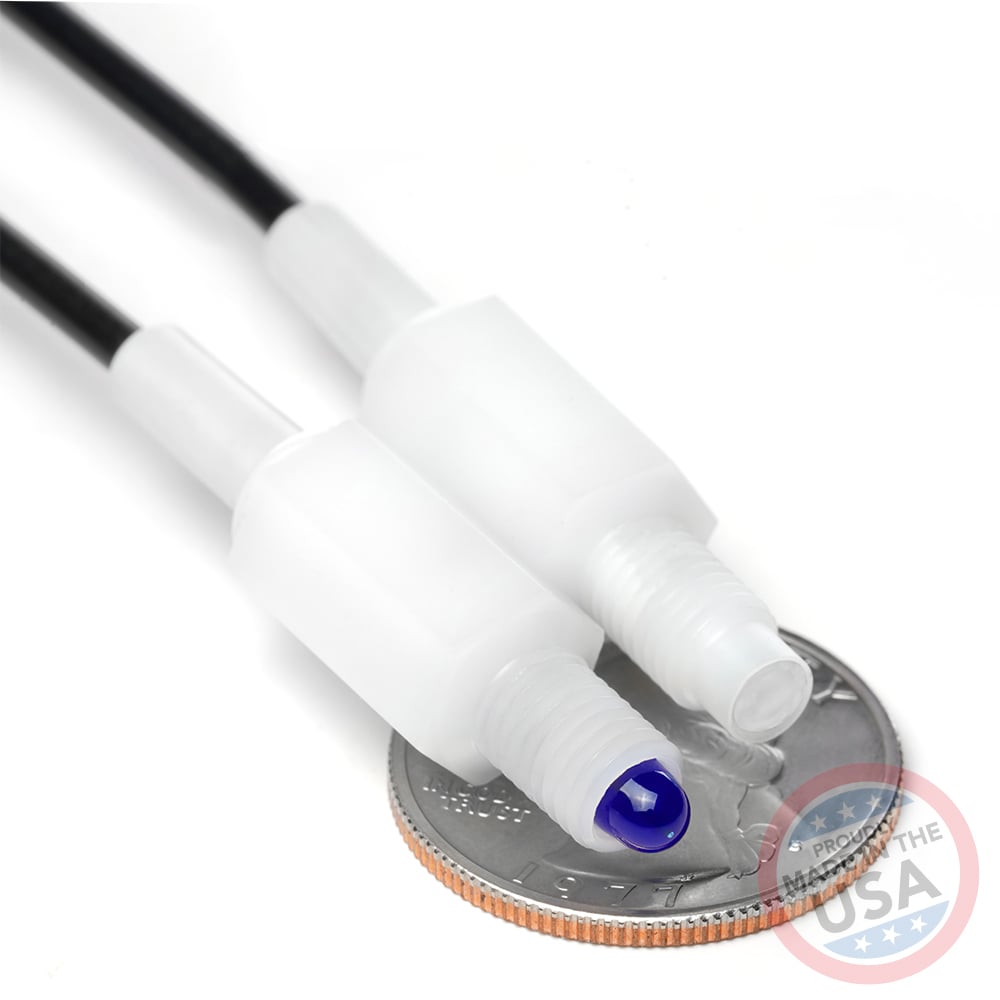

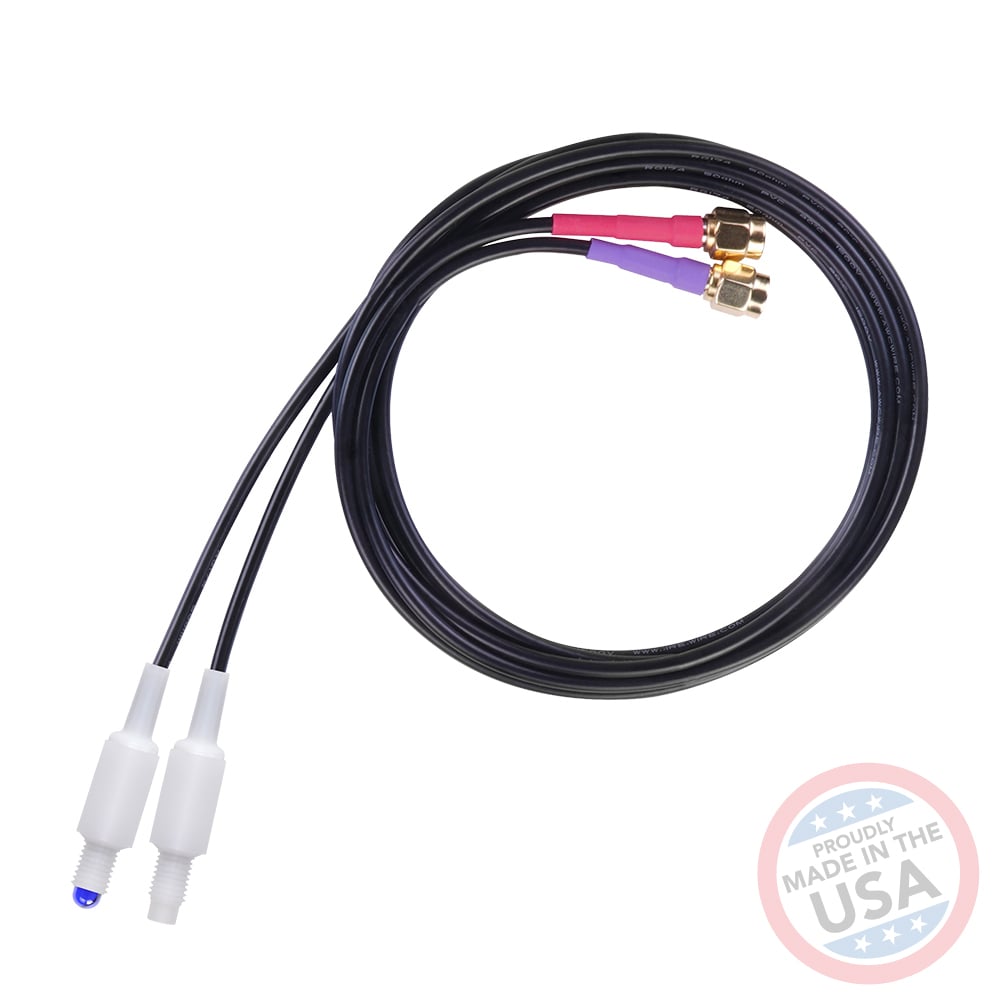

The Atlas Scientific Micro-pH Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell pH probe. A ½ cell probe works just like a normal pH probe, but it consists of two separate pieces, the working electrode and the reference electrode. The supplied connector board merges the two halves into one, just like a normal pH probe.

• 1 Micro pH Probe
• 1 Micro Reference Probe
• 1 Half Cell SMA Breakout Board
Silver / silver chloride
Range 0 − 14
Resolution +/- 0.001
Accuracy +/- 0.002
Response time 95% in 1s
Temperature range °C-5 − 90 °C
Max pressure 150 PSI
Max depth 60m (197 ft)
Connector Male SMA
Cable length 61cm (2′)
Internal temperature sensorNo
Time before recalibration ~1 month
Life expectancy ~6 − 12 months
