pH drift is a common yet critical challenge in both industrial and laboratory environments, where the pH value moves away from the true, expected pH value of a solution. Various factors can cause pH drift, such as aging of the electrode, changes in the electrolyte solution from temperature or carbon dioxide influences, or contamination/damage of the electrode surface. To fix pH drift, ensure the electrode junction is clean, unclogged, and properly stored.
In nearly all industrial and laboratory settings, pH drift affects measurement accuracy. Typically, pH electrodes last around 3 years, though signs of pH drift may appear earlier without proper maintenance.
If you’ve ever asked, “Why is my pH reading going up?” or noticed inconsistent readings from your pH meter, you’re likely experiencing this issue. A plugged liquid junction is one of the most common causes of pH drift in glass electrodes. This can significantly affect measurement reliability and shouldn’t be ignored.
Environmental factors such as carbon dioxide (CO2) absorption can also cause pH drift. In hydroponics, this issue is even more problematic, as nutrient uptake depends on optimal pH levels.
While these challenges can seem daunting at first, most issues are solved with good maintenance and troubleshooting practices. Whether you’re facing electrical interference or the low buffering capacity of pure water, there are reliable solutions.
In this guide, you’ll learn expert techniques to diagnose and fix pH drift across various industries and applications.
When pH fluctuates, it rarely happens without a good reason. Understanding the root causes of pH drift is key to maintaining stable, accurate measurements.
Fluctuating pH happens in almost all water systems and environments, and biological and chemical processes are the primary causes. Carbon dioxide plays a vital role in pH drifting. As CO2 is acidic in water, CO2 concentrations directly affect pH levels. In aquaculture ponds or aquariums that have abundant nutrients, phytoplankton blooms are formed and drive a daily pH cycle.
In aquaculture ponds or aquariums, phytoplankton blooms drive daily pH cycles – phytoplankton consume CO2 much faster than aquatic organisms can produce it via respiration, resulting in rising pH levels. On the other hand, at night, photosynthesis pauses while respiration continues. During this time, CO2 levels increase and pH is lowered. This is a prime example of how CO2 affects pH in water.
Temperature also contributes to pH drift. Temperature affects pH when temperature rapidly changes and hydrogen ion activity levels shift. To minimize this pH drift, allow your pH probe/sensor to remain in the solution until both temperature and reading stabilize.
Microbial communities found in aquatic environments can cause pH drift through their metabolic processes. As microorganisms break down organic material, they release CO2, which alters the pH level of water. In growing systems, this pH drift directly affects nutrient availability in all types of hydroponic growing systems.
In hydroponics, macronutrients are available at pH levels between 6.0 and 6.5. If pH rises above 7.0, nutrient availability declines, which creates a feedback loop, destabilizing pH and impairing plant health.

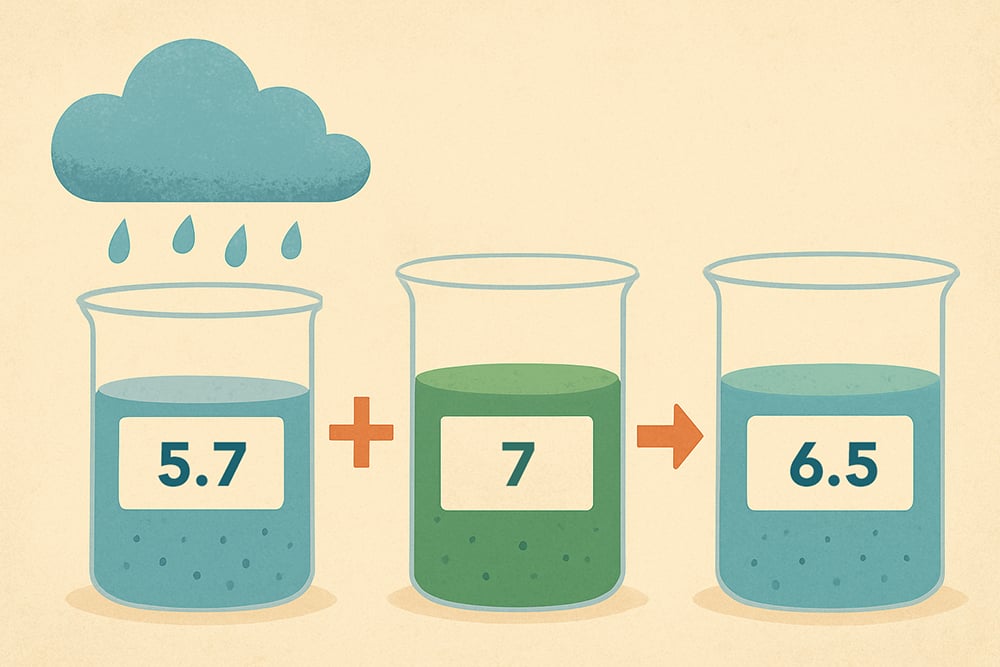

Water replacement methods can accidentally cause pH drift, particularly in systems using purified water. Reverse osmosis (RO) or distilled water has a low buffering capacity, which makes it more vulnerable to pH changes when exposed to the surrounding air. Rainwater has a pH level of 5.6 to 5.8, and when it mixes with other water sources that have a different pH level, it can shift the pH reading.
Automatic top-off systems with float valves in aquariums or hydroponic reservoirs introduce fresh water to compensate for evaporation. Over time, the buffers change because only pure water evaporates while buffering chemicals remain in the water. This is why, even if you use water with a different pH level to top off your system, it will be more dependent on the buffering capacity rather than the initial pH reading.
The physical components of pH sensors are often the primary source of pH drift issues. If your pH probe suddenly begins to show erratic pH readings, the sensor itself may be at fault.
The common causes of pH drift due to sensor and electrode-related issues include the following:
A clogged junction is the number one cause of pH drift in glass electrodes. It blocks the electrical current connection between the reference system and the solution, resulting in unstable readings.
Silver salts in the reference solution can precipitate and clog the junction. Heavy metals like lead and mercury also form insoluble salts, worsening the issue.
When measured solutions work through the junction and mix with the internal reference solution, contamination of the reference electrolyte happens. Over time, this mixing shifts the pH probe’s electrode zero-point and causes pH drift. Eventually, the reference electrolyte becomes diluted or contaminated during use, causing the pH slope and offset to drift from acceptable ranges.
Every pH electrode starts aging immediately after manufacture. Unused probes last around 12 to 18 months before showing signs of degradation. Under harsh conditions, this aging process accelerates dramatically. For example, pH sensors used in solutions with a pH of 4.0 to 8.0 at ambient temperature may last 18 months, but the same pH sensor used at higher temperatures may only last a few months.
Physical damage also contributes to pH drift. Visually inspecting pH probes should be part of your maintenance routine; in particular, look for scratches or cracks on the glass membrane surface. The common cause of wear and tear is from particulates/foreign objects hitting the bulb.
When the bulb becomes damaged, it wears down the gel layer, causing delayed response times. Microscopic cracks are difficult to see with the human eye; however, a way to look for hairline cracks is to place the pH probe into a pH 4.0 buffer solution and see if the pH reading is higher. If this is the case, replace the pH electrode immediately.
Proper storage is essential. At Atlas Scientific, we provide premium storage solutions to extend electrode life, such as our pH probe storage solution.
The most reliable method to diagnose pH electrode health is to calculate the pH slope and offset values. Proper functioning electrodes should have a pH slope between 92-102% and an offset within +/-30 mV.
New pH sensors usually have a pH slope of around 90%. Over time, this value decreases with aging. For accurate troubleshooting, we recommend measuring millivolt readings in standard buffers rather than pH values. Buffer 7.0 should read between 0 to +/-50 mV, while buffer 4.0 should be 165 – 180 mV away from buffer 7 (in the positive direction).
We can also use response times to diagnose pH sensor issues. A new pH sensor should respond within 20-30 seconds in buffers with a 3-unit difference. If it takes longer than 60 seconds, it may suggest that the electrode needs cleaning or replacing.
Apart from electrode issues, some environmental conditions and sample characteristics can cause persistent pH drift issues. Beyond mechanical failures, these issues can be subtle yet have a significant impact on measurement accuracy.
Reverse Osmosis and other purified water sources have unique pH measurement challenges because they have low conductivity. When water conductivity is below 100 microsiemens per centimeter (µs/cm), accurate measurements become difficult as they have minimal buffering capacity.
When measuring the pH level in low-conductivity samples, allow time for the solution to reach equilibrium. At 25°C, you should wait at least 5 minutes, and at lower temperatures, you may need to wait longer. These readings remain unstable as pure water readily absorbs atmospheric gases. In irrigation systems, water that has a conductivity below 700 µs/cm is seen as acceptable; however, readings above 3,000 µs/cm usually indicate problematic water.

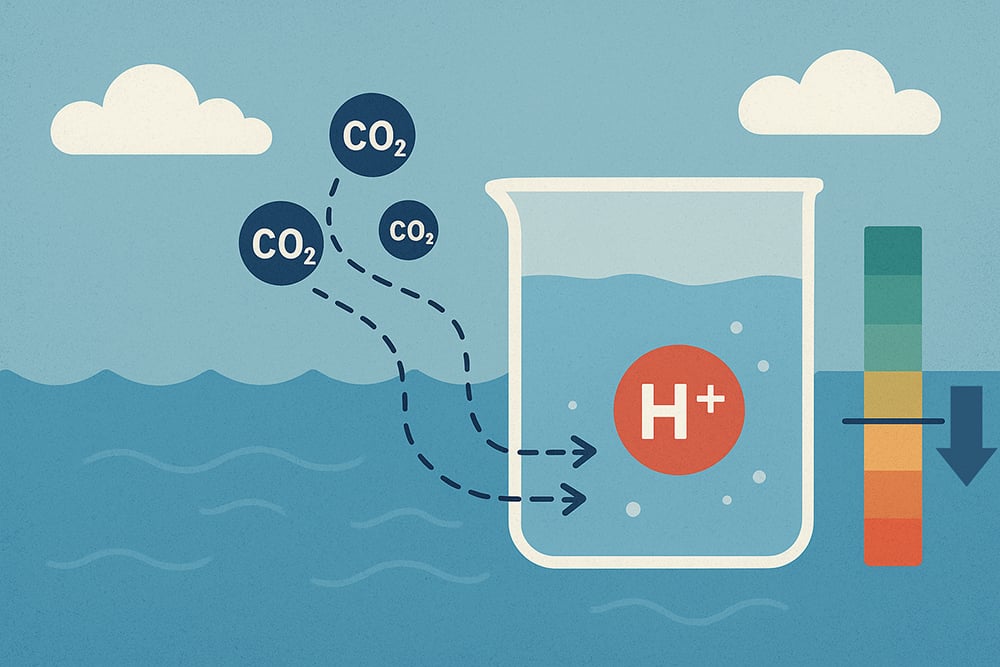

Carbon dioxide absorption from ambient air can cause the pH to drift. As CO2 dissolves in water, carbonic acid is formed, which dissociates and releases hydrogen ions, thus lowering the pH level. This is most common in unbuffered solutions like RO water, where even a tiny amount of absorbed CO2 can cause significant pH drift.
As mentioned earlier, temperature fluctuations also influence pH readings. Pure water has a pH of 7.0 at 25°C, but this can shift to 7.47 at 0°C and decrease to 6.14 at 100°C. For accurate pH meter troubleshooting, you should always calibrate and measure at the same temperature as your samples.
The high impedance of pH electrodes makes them vulnerable to electrical interference. In factory environments that have electrical noise from motors and heaters can introduce noise that can cause erratic pH readings. In industrial settings, pH readings can drift when mixing motors are activated.
Even a small electrical disturbance injected into a solution can lead to a pH drift. Many digital pH sensors eliminate interferences by converting the analog signal to digital directly in the pH sensor head. At Atlas Scientific, our Industrial pH Kit has interference-free readings, so you can rely on accurate pH measurements.
Once you have identified pH drift issues, finding reliable solutions should be your priority. These range from simple maintenance procedures to technology upgrades.
Smart pH controllers eliminate the need for manual measurements, which can lead to inconsistent results. Controllers monitor pH levels and automatically make adjustments when pH readings drift outside the desired range. Inside the controller, the peristaltic pumps deliver precise doses, maintaining optimal pH conditions without the need for constant supervision.
The main advantage of smart monitoring systems lies in their signal processing capabilities. Traditional electrochemical pH sensors detect ion concentrations in solution, which require further processing before becoming useful in process control applications. More advanced sensors (smart sensors) can bypass this limitation by incorporating data manipulation directly into the sensor module.
Buffer solutions are a practical remedy for constant pH fluctuations because they resist pH changes when acids or alkalines (bases) are added. We recommend selecting a buffer with a pKa value close to your target pH. The buffering capacity falls to just 33% when pH differs from pKa by +/- 1 unit, and drops to 1% at +/- 2 units away.
In hydroponic systems, maintaining a stable pH level between 5.5 and 6.5 is essential for crops to thrive. When pH drifts, one way to help stabilize it is by using a Cal/Mag supplement. Cal/Mag increases the water’s buffering capacity (hardness), which reduces rapid pH swings. Before adding Cal/Mag, check the pH level with a reliable pH meter and record the measurement to avoid over-adjustments.
Storing your pH electrode properly will dramatically extend its lifespan. You must never store electrodes dry; otherwise, the pH-sensing bulb will dry out.
For long-term storage, place the electrode in a storage solution and probe tip cap to keep the glass membrane hydrated, following the manufacturer’s recommended solution.
In addition to proper storage, regular maintenance is also needed. This includes cleaning contaminated electrodes by soaking them in a specialized cleaning solution for 20 to 30 minutes. If the electrode is showing slow response times, you most likely need to deep clean or replace it.
We should also note that even unopened pH buffers have a shelf life. Most buffers last two years from the manufacturing date, so always check the label before use.
Stable pH measurements form the foundation of productive growing systems, reliable research, and efficient industrial processes; however, a common problem many industries face is a pH drift.
Understanding how environmental factors such as CO2 absorption and temperature affect pH readings will help you monitor pH more accurately. Regular calibration checks, properly storing the electrode, and timely replacement of aging probe components will significantly extend measurement accuracy.
While the challenge of pH drift may seem overwhelming at first, with the knowledge in this guide, you can now quickly diagnose issues and implement appropriate solutions before they affect your work.
If you would like to learn more about pH drift or what pH probes will best suit your testing needs, reach out to the world-class team at Atlas Scientific today.
