Reverse osmosis (RO) water conductivity measures how easily electricity flows through treated water, indicating salt removal efficiency and membrane performance. This crucial measurement helps monitor RO system health and ensures optimal water purification.
Understanding conductivity is crucial for maintaining efficient reverse osmosis (RO) systems in the water purification world. While the technology behind RO may seem complex, monitoring its performance comes down to a straightforward principle: measuring how easily electricity flows through water. This measurement, known as conductivity, is a critical indicator of system health and water purity.

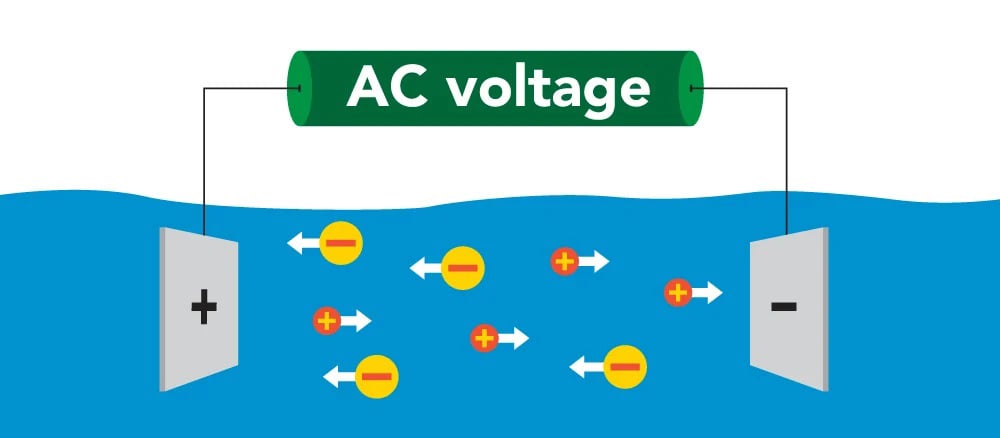

At its core, conductivity measures water’s ability to conduct an electrical current. Pure water is actually a poor conductor of electricity, but as dissolved salts and minerals are added, its conductivity increases. This relationship makes conductivity measurements an invaluable tool for monitoring RO system performance.
When we measure conductivity, we’re essentially quantifying how easily an electrical charge can travel between two probes placed a fixed distance apart in the water. The measurement unit for conductivity is Siemens per centimeter (S/cm), though in practice we typically use smaller units such as microSiemens per centimeter (µS/cm) for relatively pure water and milliSiemens per centimeter (mS/cm) for more concentrated solutions.
Different types of water exhibit vastly different conductivity readings, providing a clear indication of their purity levels. Ultra-pure deionized water, for instance, shows a conductivity of merely 0.05 µS/cm, equivalent to 18 megohm-cm resistivity. This represents the theoretical lower limit for water conductivity under normal conditions.
Typical RO permeate water should fall within the range of 0.05-200 µS/cm, indicating effective removal of dissolved solids. Moving up the scale, drinking water typically registers between 200-800 µS/cm, reflecting its mineral content. At the far end of the spectrum, seawater exhibits conductivity around 50,000 µS/cm (50 mS/cm), demonstrating its high salt content.
Reverse osmosis systems represent a significant investment in water treatment infrastructure, and their efficient operation directly impacts operational costs. The relationship between water production rate and energy consumption determines the cost per unit of treated water. This is where conductivity monitoring becomes invaluable.
Conductivity measurements provide immediate feedback on system performance through several critical functions:
Continuous conductivity monitoring allows operators to verify that membrane separation is occurring at expected efficiency levels. By comparing inlet and outlet conductivity readings, operators can calculate rejection rates and ensure the system meets design specifications.
Real-time conductivity measurements can identify sudden changes that might indicate membrane damage or system failures. Even small increases in permeate conductivity can signal developing problems before they become catastrophic.
By tracking conductivity trends over time, operators can optimize cleaning and maintenance schedules. Gradually increasing conductivity might indicate membrane fouling, while sudden spikes could suggest mechanical failures requiring immediate attention.
Continuous monitoring ensures product water consistently meets quality specifications. This is particularly crucial in industries with strict water quality requirements, such as pharmaceutical manufacturing or microelectronics production.
The integrity of RO membranes can be compromised through various mechanisms, each with distinct conductivity signatures. Understanding these patterns helps operators identify and address problems promptly:
When pre-treatment systems fail to remove abrasive particles, these can physically damage membrane surfaces. This typically results in a gradual increase in conductivity as the membrane’s rejection capability deteriorates.
Insufficient dechlorination can lead to oxidative damage of polyamide membranes. This often manifests as a rapid increase in conductivity across affected membrane elements.

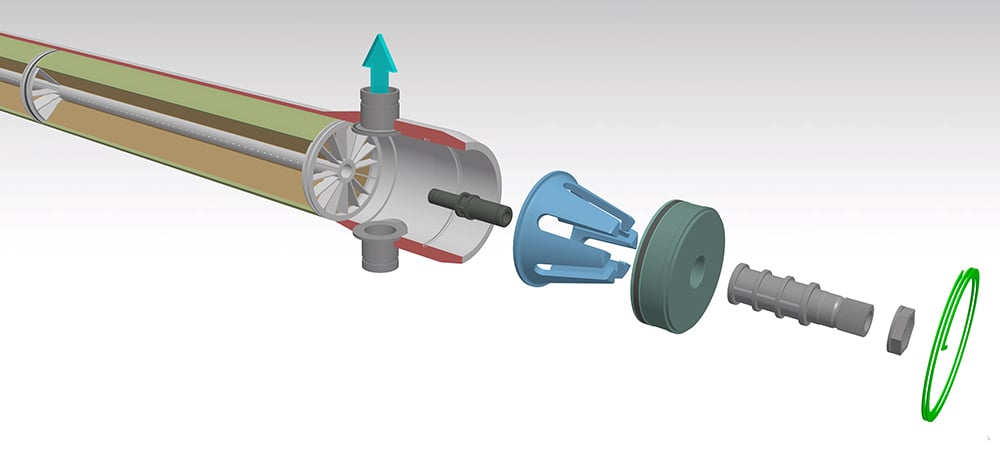

Problems with O-rings, seals, or other mechanical components usually cause sudden, localized increases in conductivity. These can often be identified through careful profiling of individual membrane vessels.
Natural membrane aging and progressive fouling typically cause gradual increases in conductivity over months or years. Regular trending of conductivity data helps operators distinguish between normal aging and accelerated degradation requiring intervention.
The relationship between conductivity and Total Dissolved Solids (TDS) provides a powerful tool for water quality assessment. While the correlation isn’t perfectly linear across all concentrations, it’s sufficiently reliable for most practical purposes within typical operating ranges.
The conversion process between conductivity and TDS requires understanding several key factors:
Different dissolved ions contribute differently to conductivity. For example, sodium chloride produces a different conductivity response than calcium carbonate at the same concentration.
Conductivity measurements are temperature-dependent, typically increasing by about 2% per degree Celsius. Modern instruments usually include temperature compensation.
The standard conversion factor of 0.64 works well for sodium chloride-dominated waters, but may need adjustment for waters with different ionic compositions. Some guidelines for different water types:
Comprehensive system profiling forms the backbone of effective conductivity monitoring. This process involves more than simply taking occasional measurements – it requires a systematic approach to data collection and analysis.
Creating a baseline profile requires measuring conductivity at multiple strategic points throughout the system under normal operating conditions. Key measurement points include:
Rather than focusing on absolute values, operators should pay careful attention to changes over time. This involves:
Different stages of an RO system should show predictable relationships in their conductivity readings. Regular comparison between stages can reveal developing problems before they become serious:
Maintaining detailed records serves multiple purposes:
When high conductivity is detected in RO permeate, operators should follow a systematic troubleshooting approach:

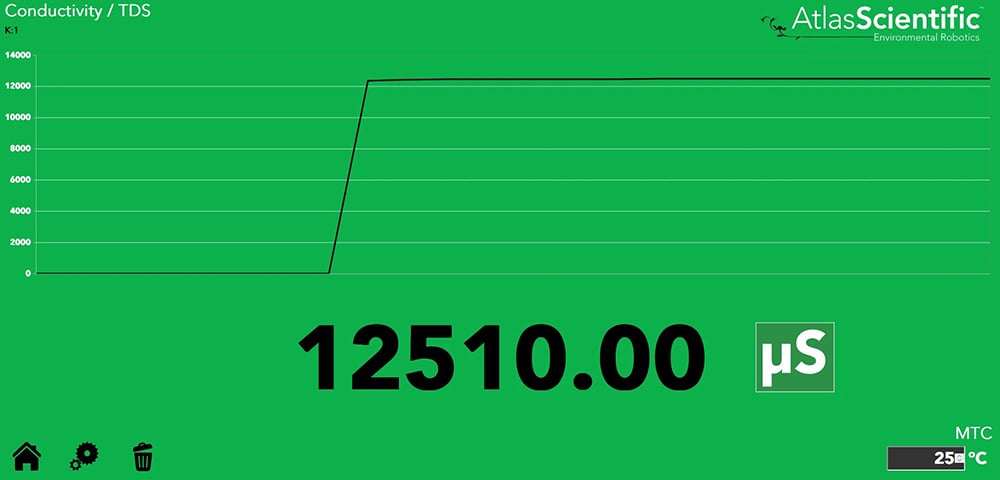

Today’s RO systems benefit from sophisticated monitoring equipment that provides unprecedented insight into system performance.
The latest generation of conductivity sensors, incorporates several key innovations:
A comprehensive maintenance strategy must incorporate conductivity monitoring as part of a larger system optimization approach.
Understanding and effectively monitoring conductivity in RO systems remains fundamental to ensuring efficient operation and high-quality water production. The combination of modern monitoring technology with comprehensive maintenance strategies allows operators to optimize system performance while minimizing operational costs and extending membrane life.
Success in RO system operation depends on maintaining vigilant conductivity monitoring practices while leveraging advanced technology and proper maintenance procedures. As water treatment demands continue to grow and quality standards become more stringent, mastering the complexities of RO water conductivity becomes increasingly crucial for water treatment professionals.
If you would like to learn more about reverse osmosis water conductivity or what conductivity meters we offer, do not hesitate to contact the world-class team at Atlas Scientific. Our team is here to ensure your systems continue to meet the evolving demands of water treatment applications.
