Industrial PT-1000 Temperature Probe

#ENV-50-TMP

$124.99

Add & Save

4+ units

$118.75

10+ units

$115.50

25+ units

$112.50

Industrial PT-1000 Temperature Probe

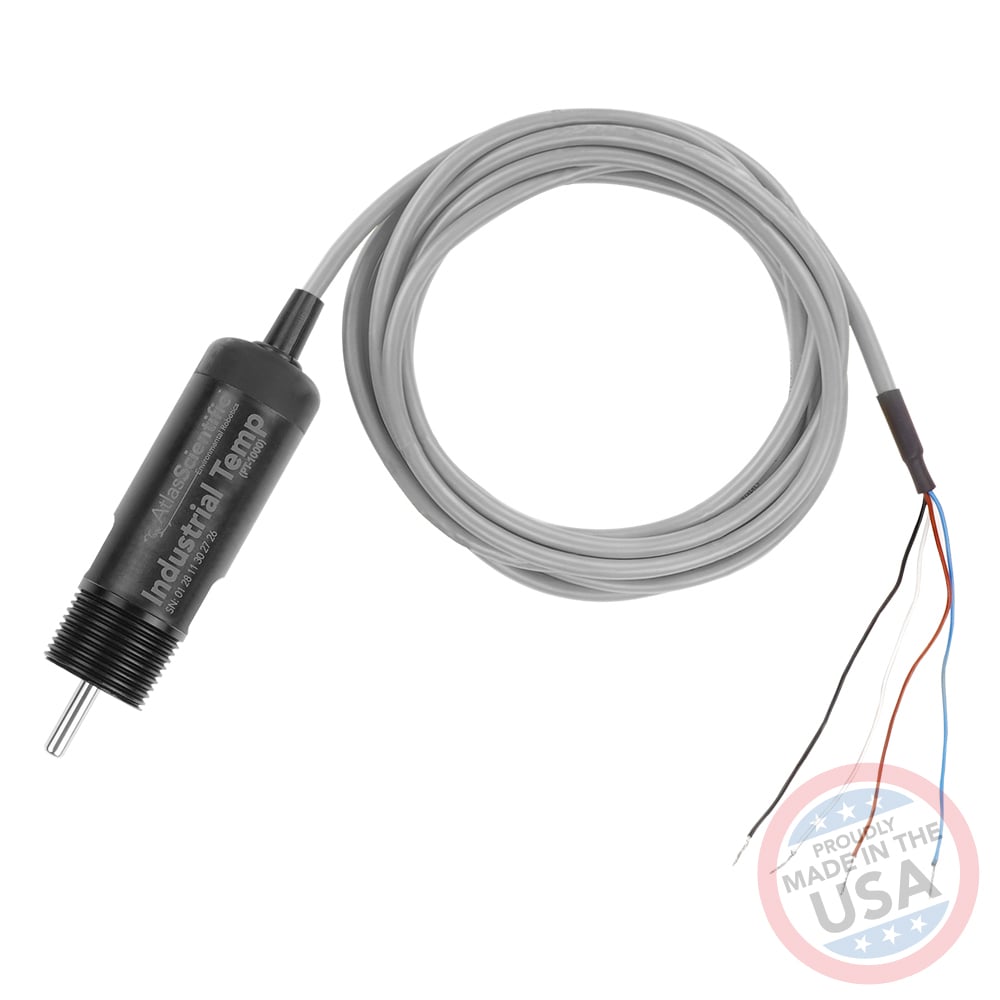

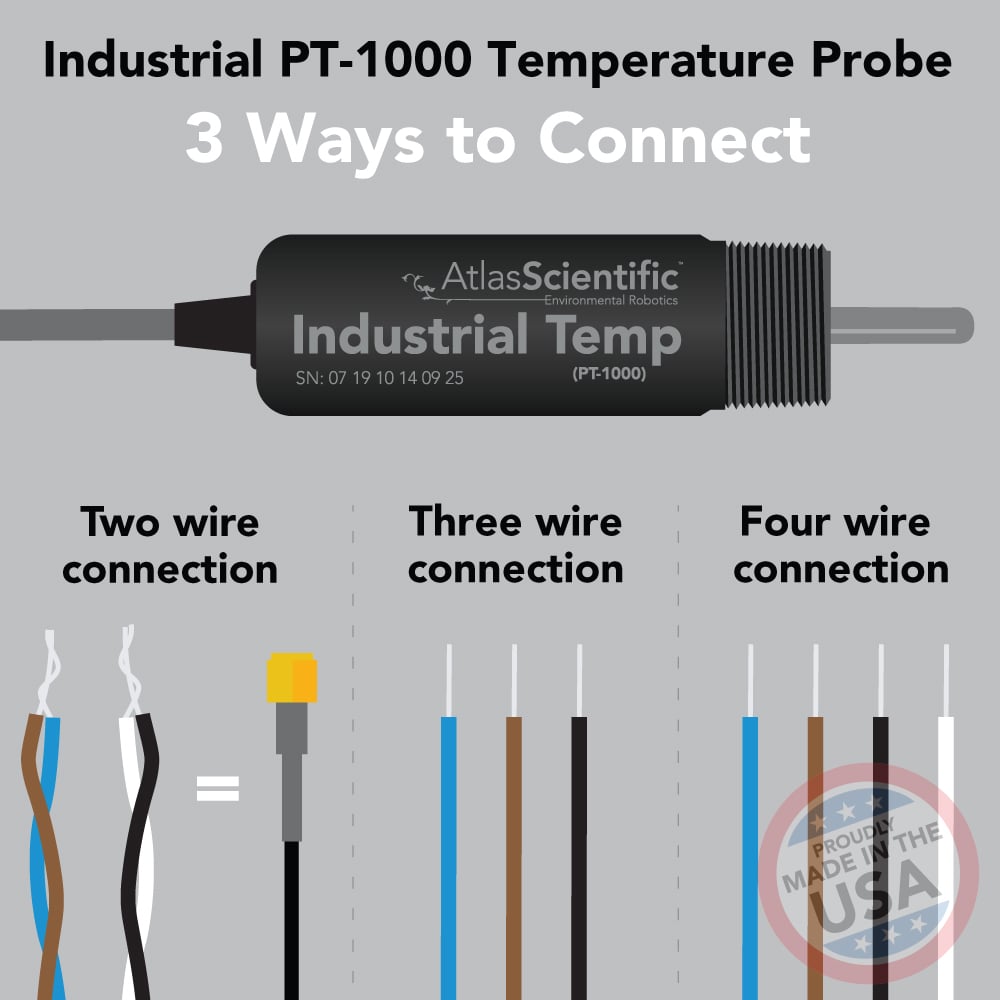

The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.

ReadsTemperature
Probe typeClass A platinum, RTD
Range-55 ̊C to 220 ̊C
Accuracy+/- (0.15 + (0.002*t))
Reaction Time90% in 13s
Cable length3 Meters (10′)
ConnectorTinned leads
OutputResistance (Analog)
Life expectancy15 years

The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.

ReadsTemperature
Probe typeClass A platinum, RTD
Range-55 ̊C to 220 ̊C
Accuracy+/- (0.15 + (0.002*t))
Reaction Time90% in 13s
Cable length3 Meters (10′)
ConnectorTinned leads
OutputResistance (Analog)
Life expectancy15 years
