Non-isolated USB Carrier Board

• RoHS Certificate
• CE Certificate

• Terminal Emulator
• USB Drivers (you proabably won't need these)

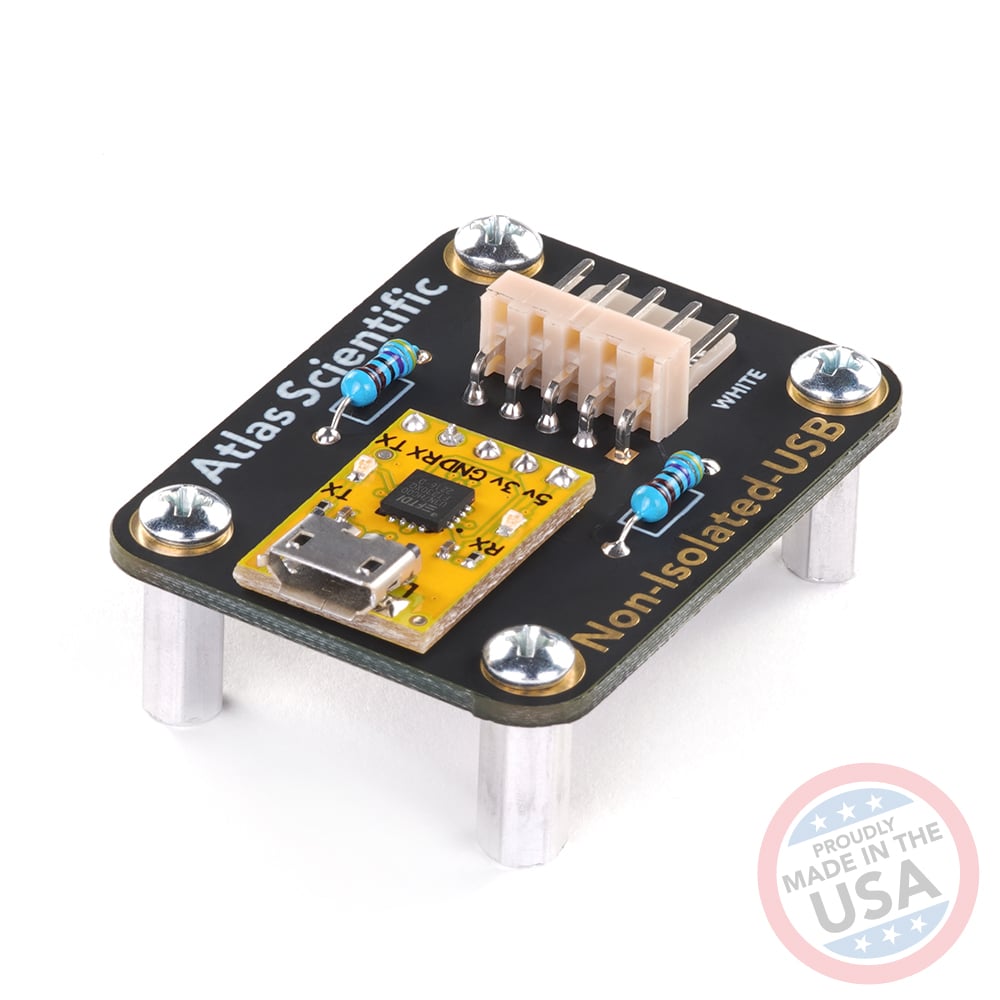

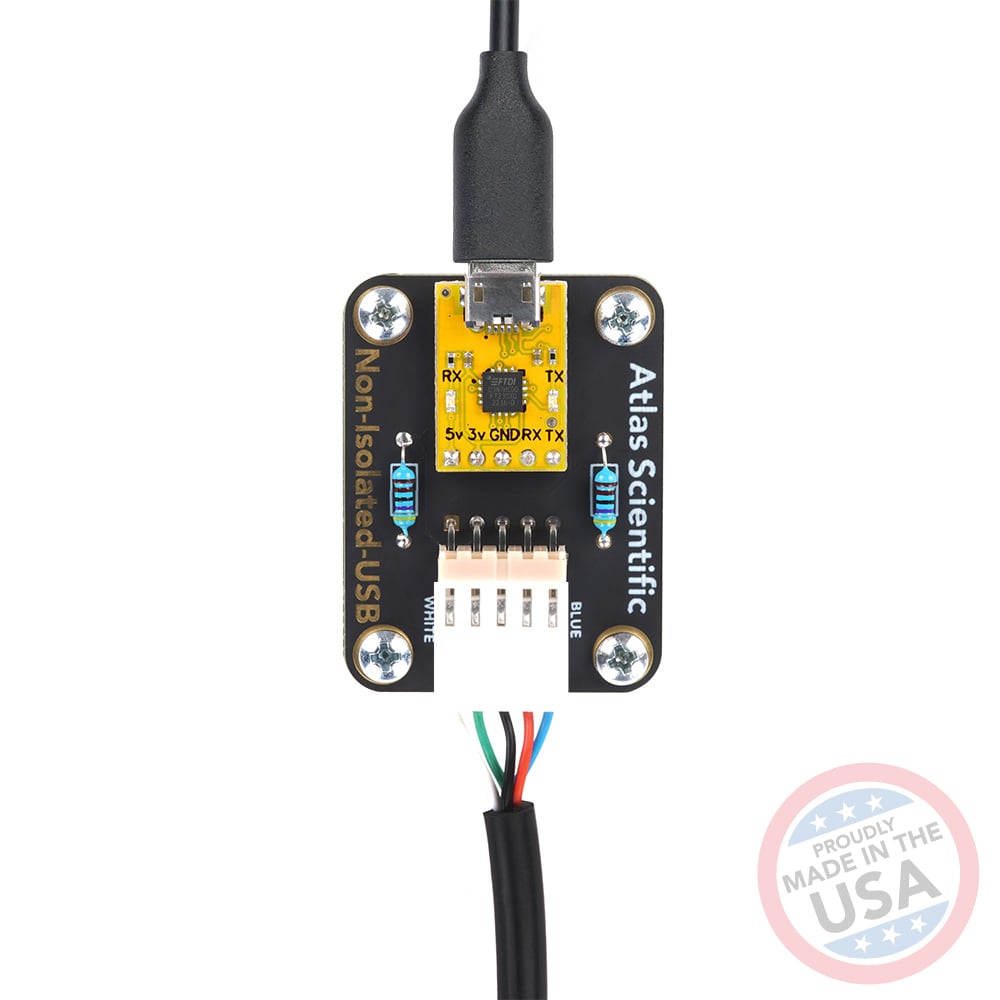

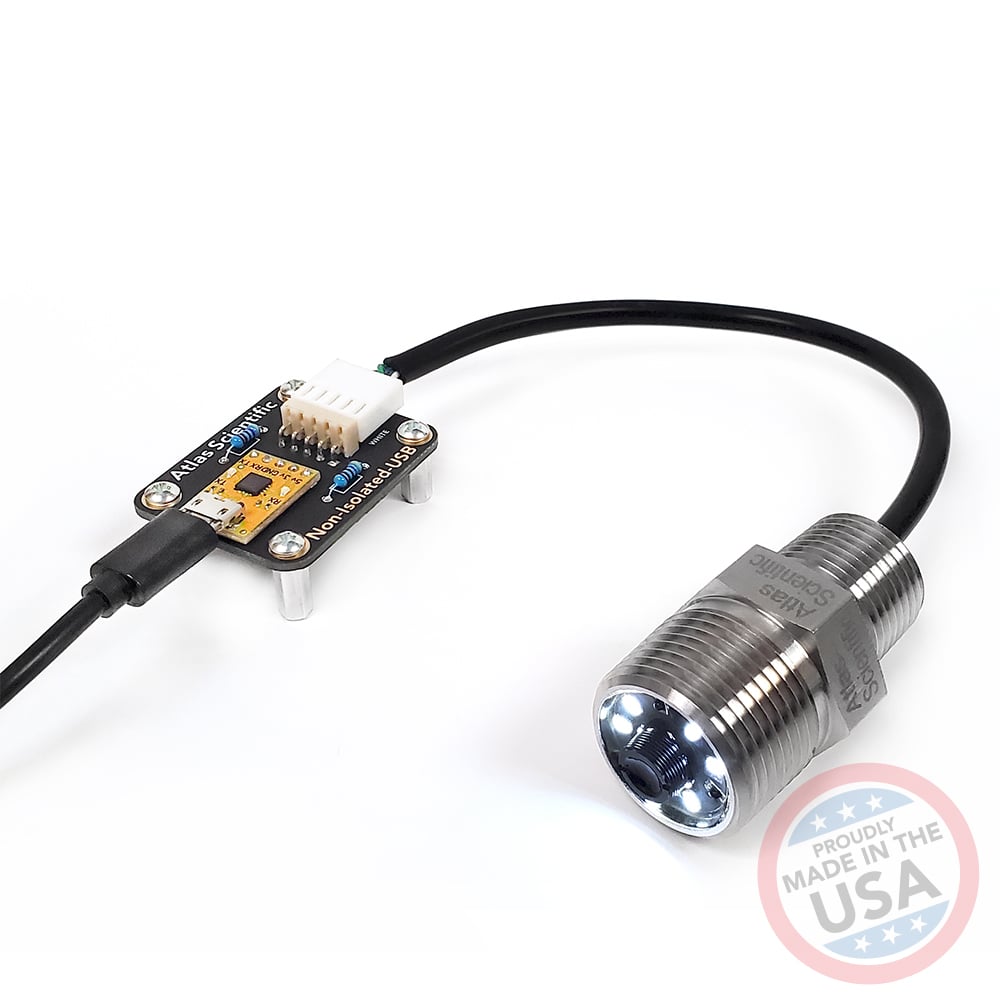

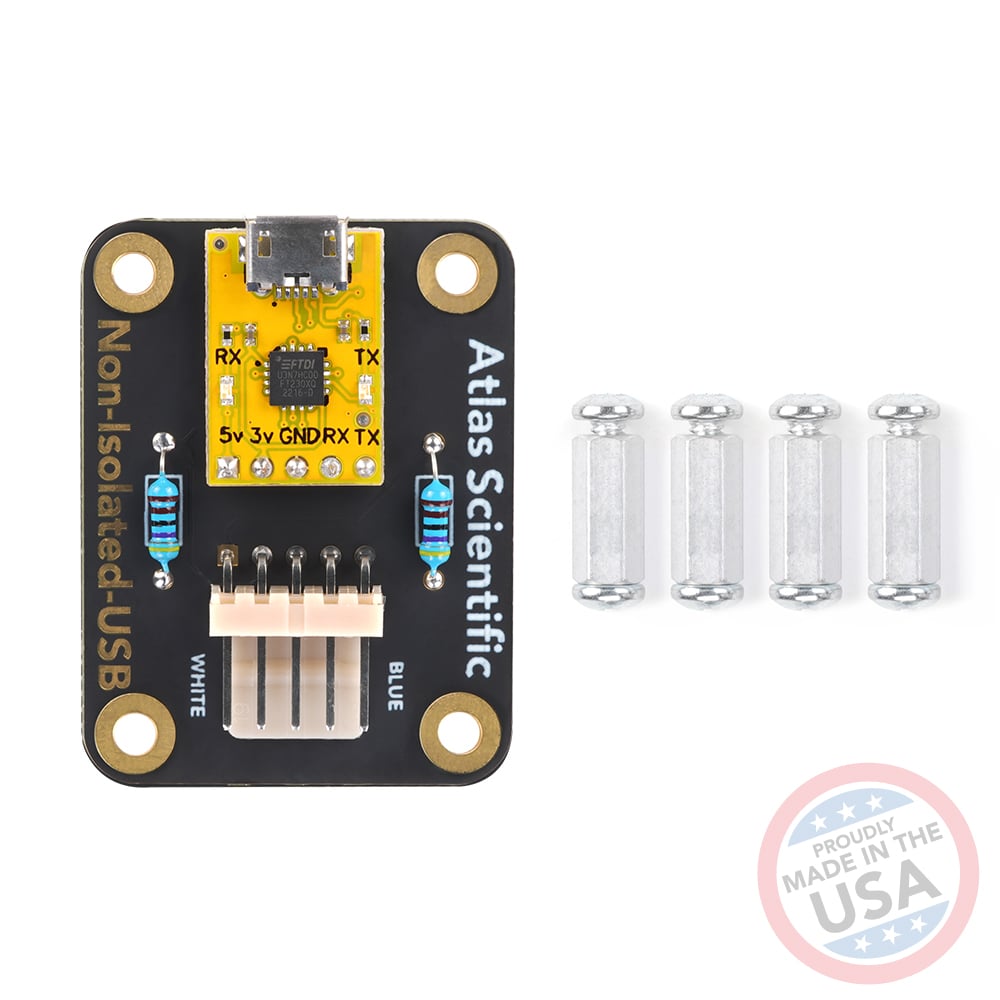

This simple carrier board is designed to give your Atlas Scientific gas and color sensors a USB output. When connected to a computer, it will be identified as a virtual comport. It can be used with the Atlas Desktop Software or with software of your own making. This is a drop-in component; no code is needed to make this carrier board work.

Compatibility:

• EZO-O2
• EZO-CO2
• EZO-HUM
• EZO-RGB

This carrier board uses an FTDI-based Serial to USB converter IC.

Virtual comport settings:

• Baud: 9600
• Data bits: 8
• Stop bits: 1
• parity: none
• Flow control: none
