A peristaltic pump operates by compressing and releasing a flexible tube to move fluid. Rollers or shoes successively press against the tube, creating a vacuum that draws fluid into the tube and then pushes it out. This design ensures a clean, contamination-free flow, as the fluid only contacts the inner surface of the tube. Peristaltic pumps are ideal for precise dosing and handling sensitive or corrosive liquids.

Peristaltic pumps are essential devices in many industries, from medical applications to food processing. We will explore how these pumps work, from their basic principles to setup and operation. Whether you’re a novice or an experienced user, this article will provide valuable insights into the world of peristaltic pumps.

What is a Peristaltic Pump?

A peristaltic pump is a type of positive displacement pump used for pumping a variety of fluids. The term “peristaltic” comes from the Greek word “peristaltikos,” meaning “clenching and compressing,” which aptly describes the peristaltic pump’s working mechanism. These pumps are renowned for their ability to handle sensitive or sterile fluids without contamination, making them ideal for applications in healthcare, biotechnology, and food processing industries.

The unique design of peristaltic pumps allows them to maintain the quality of the pumped fluid, as the fluid only comes into contact with the interior of the tubing. This feature is particularly crucial in applications where it is essential to maintain sterility or prevent cross-contamination.

The Working Principle Of Peristaltic Pumps

The pump contains a flexible tube fitted inside a circular pump casing. This tube is typically made of a durable, flexible material that can withstand repeated compression and relaxation cycles. The choice of tubing material depends on the specific application and the nature of the fluid being pumped.

A rotor with several “rollers” or “shoes” is positioned in the center of the casing. These rollers are usually made of a hard, wear-resistant material to ensure longevity. The number of rollers can vary depending on the pump design, with more rollers generally resulting in a smoother flow but potentially increased wear on the tubing.

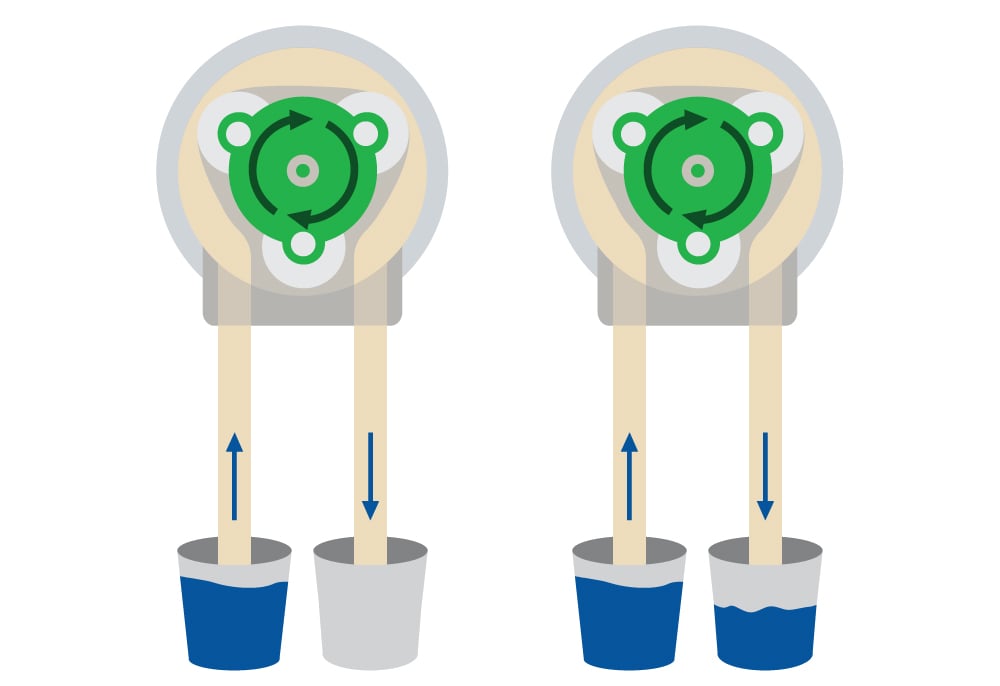

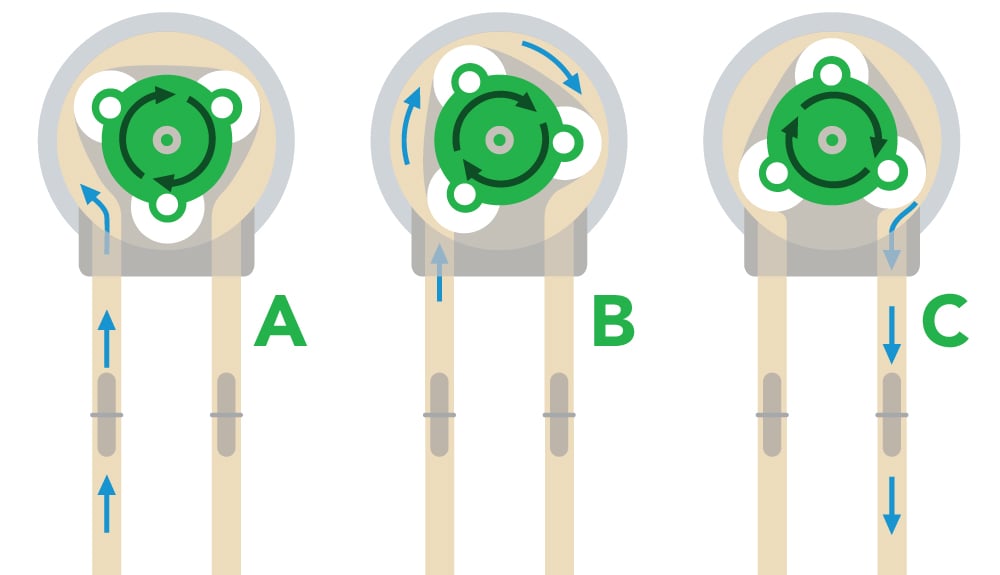

As the rotor turns, the rollers compress the flexible tube against the casing, creating a seal. This compression action effectively traps a small volume of fluid between two points of compression. This compression forces the fluid inside the tube to move forward. As one roller releases its compression, the next roller has already created a new seal further along the tube, ensuring continuous fluid movement.

As the roller moves away, the tube regains its original shape, creating a vacuum that draws more fluid into the pump. This self-priming action is one of the key advantages of peristaltic pumps, allowing them to easily handle air or gas in the fluid stream.

This process repeats with each rotation, creating a consistent flow of fluid. The flow rate can be precisely controlled by adjusting the rotation speed of the rotor.

The beauty of this system is that the fluid only contacts the inside of the tube, never touching any other part of the pump mechanism. This makes peristaltic pumps ideal for applications requiring high levels of hygiene or where the fluid must remain uncontaminated.

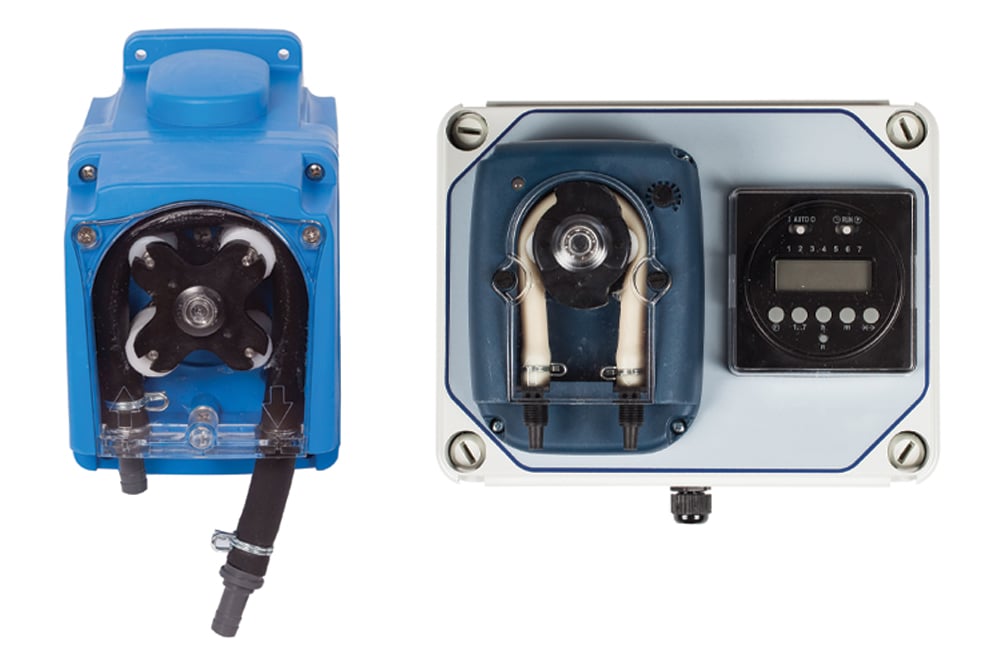

Peristaltic Pump Components

Understanding the key components of a peristaltic pump is crucial for proper operation and maintenance. Each component plays a vital role in the pump’s function and efficiency:

Pump Casing: This is the main body of the pump that houses the rotor and tubing. The pump casing design can vary depending on the specific application and required flow rates. Some designs allow for easy access to the tubing for quick replacement or maintenance.

Rotor: The central rotating component that drives the pumping action. The rotor is typically made of a durable material such as stainless steel or high-grade plastic. Its design and balance are crucial for smooth operation and minimizing vibration.

Rollers or Shoes: Attached to the rotor, these compress the tubing to move the fluid. The number and design of the rollers can affect the pump’s performance characteristics. Some pumps use shoes instead of rollers, which can provide a different compression profile.

Tubing: The flexible tube through which the fluid flows. The material of the tubing can vary depending on the application, with options including silicone, PVC, and more specialized materials for specific chemical compatibilities. The tubing’s durability and flexibility are crucial factors in the pump’s performance and lifespan.

Drive Motor: Provides the power to rotate the rotor. The motor’s specifications, such as speed range and torque, are important considerations when selecting a pump for a specific application. Many modern peristaltic pumps use variable-speed motors for precise flow control.

Control System: Regulates the speed and direction of the pump. Advanced control systems may include features such as programmable dispensing, remote operation, and integration with other process control systems.

Setting Up A Peristaltic Pump

Proper setup is crucial for optimal performance. Here’s a detailed guide to setting up a peristaltic pump:

Choose the right tubing: Select tubing material compatible with your fluid and application. Consider factors such as chemical compatibility, temperature range, and pressure requirements. Some applications may require FDA-approved or USP Class VI-compliant tubing.

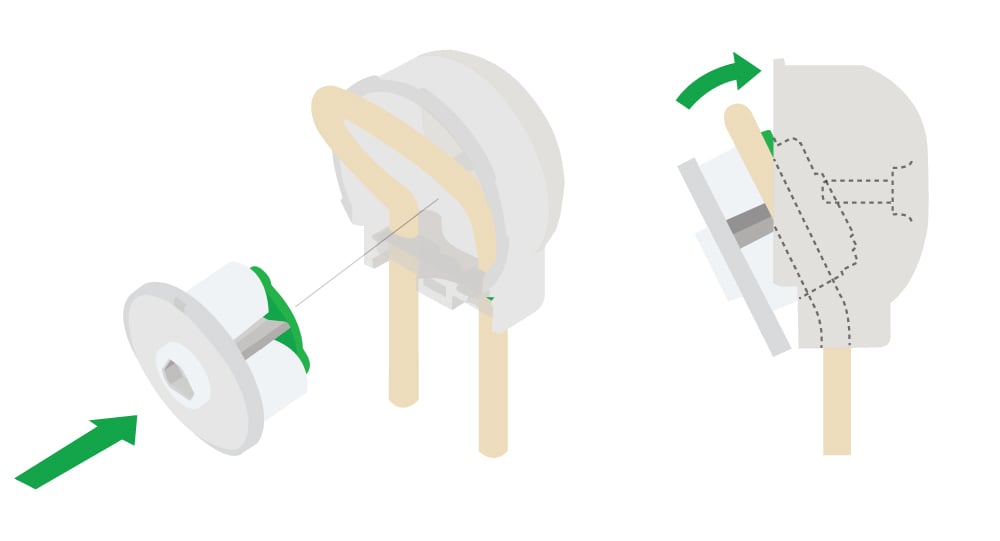

Install the tubing: Carefully fit the tubing into the pump casing, ensuring it’s not twisted or stretched. Proper installation is crucial for achieving the expected lifespan of the tubing. Some pump designs feature easy-load casing that can simplify this process.

Adjust occlusion: Set the roller pressure to compress the tube adequately without excessive wear. This step is critical for balancing pumping efficiency with tubing longevity. Many modern pumps have pre-set or automatically adjusting occlusion settings.

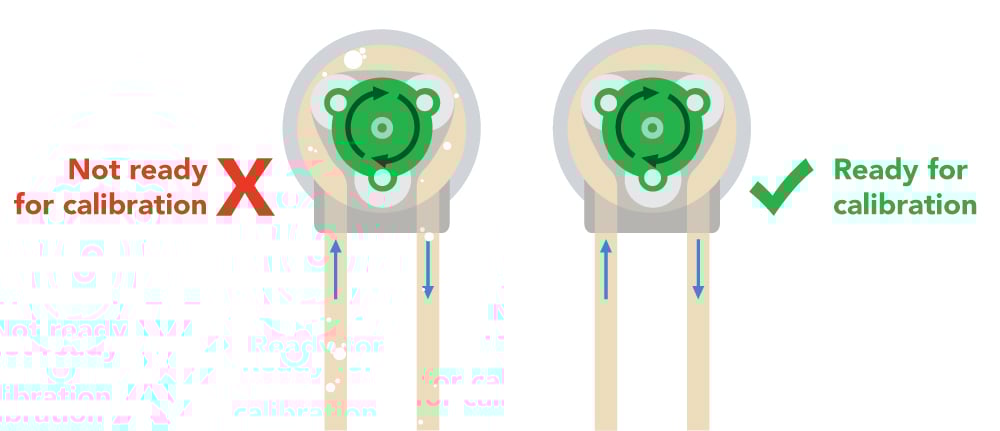

Prime the pump: Fill the tubing with fluid to remove air bubbles. This step is important for achieving accurate flow rates from the start of operation. Some pumps have a dedicated priming function to assist with this process.

Connect input and output lines: Ensure secure connections to prevent leaks. Use appropriate fittings and consider using clamps or other securing methods to prevent disconnection during operation.

Set flow rate: Adjust the pump speed to achieve the desired flow rate. Many pumps allow for precise control of rotation speed, which directly correlates to flow rate. Some advanced models may include calibration functions to ensure accuracy.

Perform a test run: Start the pump and check for proper operation before beginning your actual process. Monitor for any unusual noises, vibrations, or leaks during this test run.

How To Operate A Peristaltic Pump

Once set up, operating a peristaltic pump is relatively straightforward, but attention to detail can ensure optimal performance:

Start the pump at a low speed and gradually increase to the desired flow rate. This gradual start can help prevent sudden pressure changes in the system and allow for any final adjustments.

Monitor the fluid flow and pressure to ensure they remain within acceptable ranges. Some advanced pumps include integrated flow and pressure sensors for real-time monitoring.

Watch for any signs of tubing wear or fatigue during operation. Early detection of wear can prevent unexpected failures and fluid leaks.

If pumping viscous fluids, be aware that you may need to reduce the pump speed to maintain efficiency. Viscous fluids can require more torque to pump, potentially affecting flow rates at higher speeds.

For precise dispensing applications, use the pump’s control system to program specific volumes or time-based dispensing. Many modern peristaltic pumps offer advanced programming options for complex dispensing protocols.

Be mindful of the pump’s duty cycle, especially for continuous operation applications. Some pumps may require periods of rest to prevent overheating or excessive wear.

Maintenance & Care

Proper maintenance ensures the longevity and reliable performance of peristaltic pumps:

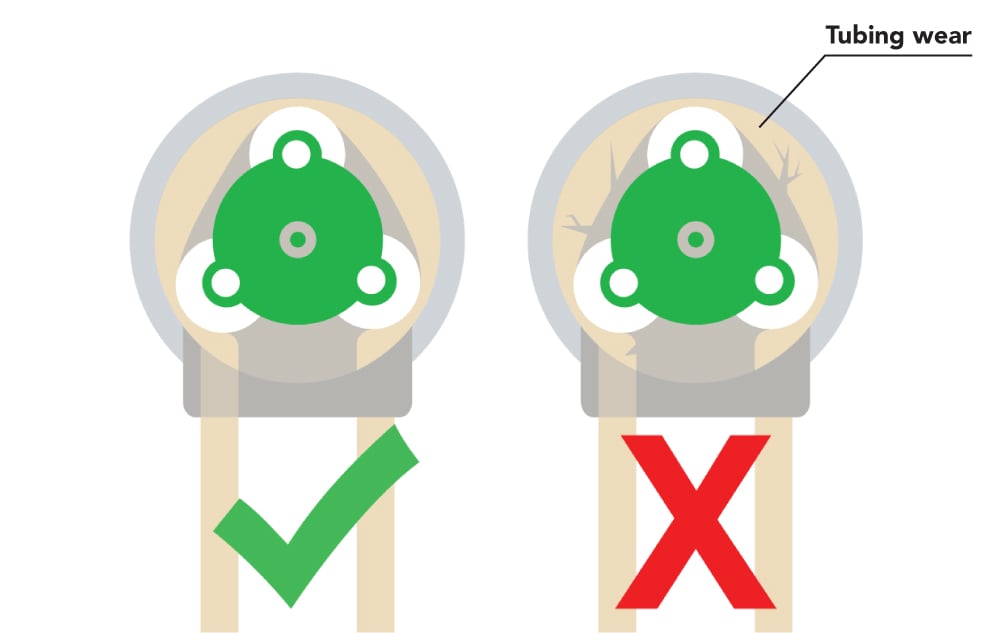

Regularly inspect the tubing for signs of wear or degradation. The frequency of inspection depends on the operating conditions and the type of fluid being pumped. Look for signs of flattening, cracking, or discoloration.

Clean the pump casing and rollers to prevent the buildup of debris. Use cleaning solutions compatible with the pump materials and the fluids being pumped. For applications requiring high levels of cleanliness, consider sterilization procedures recommended by the manufacturer.

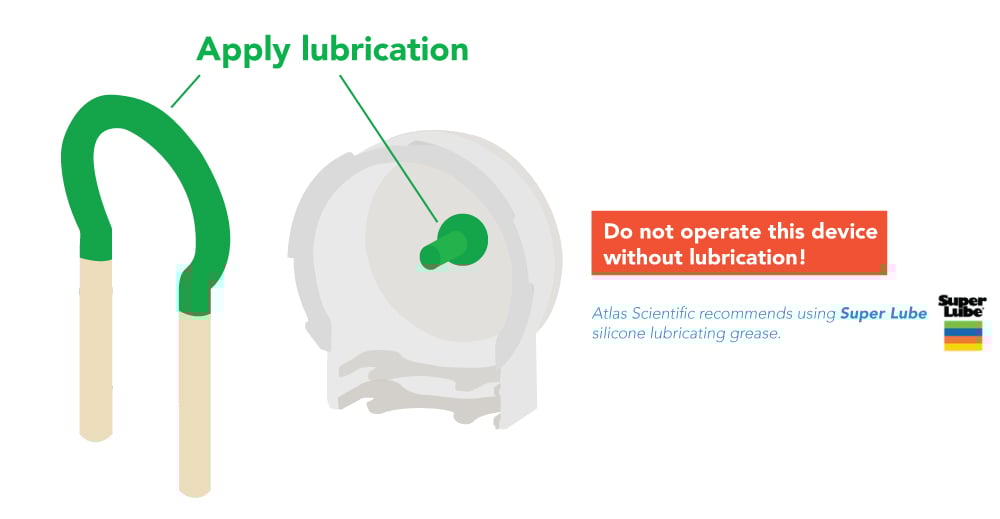

Lubricate moving parts as recommended by the manufacturer. This typically includes bearings and other mechanical components. Be sure to use lubricants that are compatible with your application, especially for pumps used in food or pharmaceutical processing.

Replace tubing at regular intervals, even if it appears undamaged.

Preventive replacement can help avoid unexpected failures during critical processes. Keep a log of tubing changes to help establish optimal replacement intervals for your specific application.

Check and adjust occlusion settings periodically. Changes in tubing elasticity over time may necessitate adjustments to maintain optimal performance.

Keep the pump and surrounding area clean to prevent contamination. This is particularly important in sterile or hygienic applications.

Perform regular calibration checks to ensure accuracy, especially for applications requiring precise flow rates or dispensing volumes.

Consider implementing a preventive maintenance schedule based on the pump’s usage and the criticality of your application.

Advantages & Limitations

Understanding the pros and cons of peristaltic pumps helps in determining their suitability for specific applications.

Advantages

  • Contamination-free pumping
  • Gentle handling of sensitive fluids
  • Easy to clean and maintain
  • Can handle high-viscosity fluids
  • Self-priming capabilities
  • Reversible flow direction
  • Dry running capability
  • Accurate and repeatable flow rates
  • Low shear stress on pumped fluids
  • Ability to handle fluids with suspended solids

Limitations

  • Limited to lower-pressure applications
  • Pulsating flow (can be mitigated with multi-channel designs)
  • Tubing wear and replacement costs
  • Lower efficiency compared to some other pump types
  • Limited temperature range due to tubing material constraints
  • Potential for tubing rupture in case of blockage

Summary

Whether you’re in healthcare, biotechnology, or any industry requiring precise and contamination-free fluid handling, peristaltic pumps will likely continue to play a crucial role in your operations. Their unique advantages make them a go-to solution for many challenging fluid handling tasks, and their continued evolution ensures they will remain relevant in an ever-changing industrial landscape.
